Acoustic Plaster Systems
Documents
Rockfon Mono Acoustic
Innovative, seamless, aesthetically pleasing acoustic ceiling
All the benefits of a stone wool ceiling: excellent acoustic performance, fire protection and easy integration of all services
Installed directly to suspended gypsum ceiling, the perfect design solution for new-build or renovation projects
- Description
- Stone wool panel 40mm
Display surface: Flat spray surface - Size
- 1200x1200 mm
- Edge
- Flat
- Color
- White
- Surface
- Flat
- Light reflection
- 78%
- αw
- 1.00
- NRC
- 0.90
- Rw (C;Ctr)
- 22 (-2;-3)
- Fire resistance
- A2-s1,d0
option
| Edge detail | Modul | Montage |
|---|---|---|
TE - Mono® Acoustic Direct | 1200x1200x40 mm |

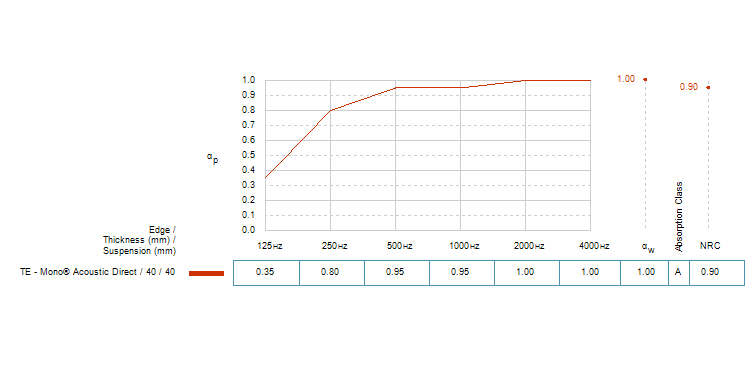

Performans
| Edge Detail | Thickness (mm) | Suspension (mm) | αw | NRC | Class | Sound curve |
|---|---|---|---|---|---|---|
| TE - Mono® Acoustic Direct | 40 | 40 | 1.00 | 0.90 | A |  |
Sound absorption
αw: up to 1.00 (Class A)
Direct sound insulation
Rw (C;Ctr) = 22 (-2;-3) dB
Reaction to fire
Class A2-s1,d0
Light reflection
78%
Humidity and sag resistance
up to 100% RH
Cleaning
Vacuum
Hygiene
Stone wool provides no sustenance to micro-organisms
Environment
100% recyclable
Indoor environment
A selection of ROCKFON products have been awarded:
