Clip-in Heavy Duty Nonius
General Information
Heavy duty clip-in system consists of a heavy duty rated concealed supporting structure where demountable metal tiles can be clipped into the inverse V shaped omega main runner. The grid system is not visible thus providing more aesthetical and plain view comparing to the standard visible grid system. All panels are singularly and individually demountable thus enabling easy and fast access above the ceiling
- Panel Type
- 0.5 ~ 1.0 mm. aluminium or galvanised steel
- Panel Size
- Width from 300 – 600 mm.
Width from 300 – 2400 mm.
- Grid System
- Heavy Duty Clip-in grid system
- Perforation
- Full perforated, 50 mm. – 100 mm. bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Felt
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
- Certifications
- TSE, CE

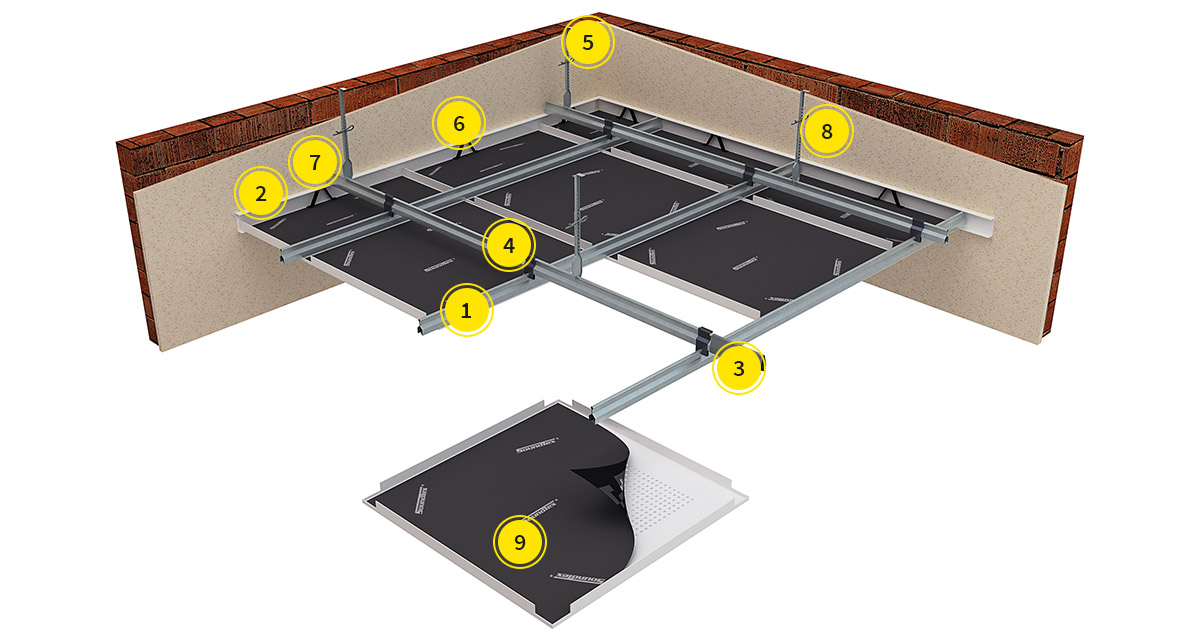

Details
| S.No | Görsel | Tanım | 600x600 mm |
|---|---|---|---|
| 1 |  | Heavy Duty Clip-in taşıyıcı profil | 2,5 mt/m² |
| 2 |  | C kenar köşebent | 0,7 mt/m² |

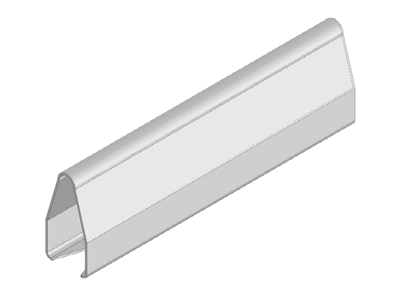

| 3 |  | Heavy Duty Clip-in profil ekleme | 0,65 ad/m² |

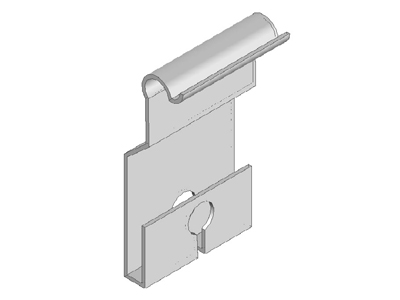

| 4 |  | Heavy Duty Clip-in birleşim klipsi | 1,4 ad/m² |

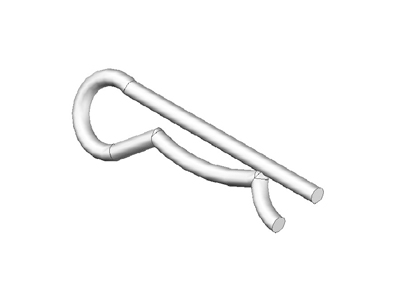

| 5 |  | Heavy Duty Clip-in Nonius pim | 1,40 ad/m² |

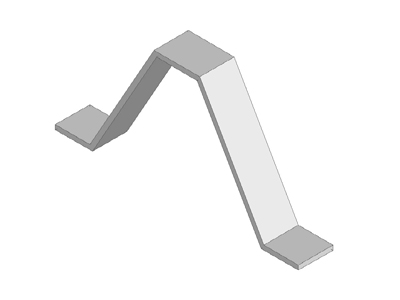

| 6 |  | Kenar baskı takozu | 0,70 ad/m² |

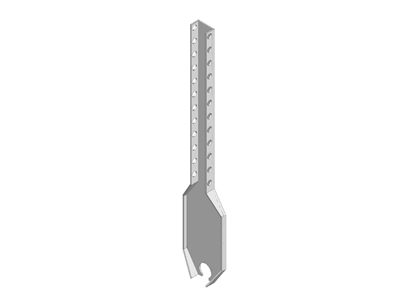

| 7 |  | Heavy Duty Clip-in Nonius askı alt | 0,70 ad/m² |

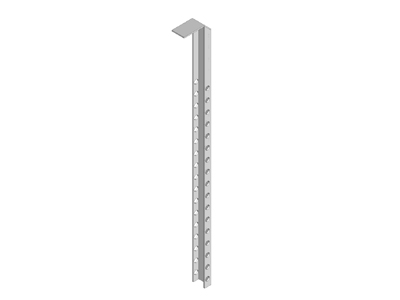

| 8 |  | Heavy Duty Clip-in Nonius askı üst | 0,70 ad/m² |
| 9 | Akustik Kumaş | 1,00 ad/m² |
| Colors(RAL Code) |
|
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage
Assembly content is being prepared
