Lay-in System Semi-Concealed
General Information
Lay-in system is formed by allowing aluminium or galvanised steel panels lean on T15/24 or T15/24 channel grid system. This system is also called as “semi-concealed” as runners are visible but there is a shadow effect. All panels are demountable manually without any special tool so that the system enables fast and easy access to the ceiling void.
- Panel Type
- 0.5 ~ 0.7 mmm aluminium or galvanised steel
- Panel Size
- 300 mm x 300 mm
600 mm x 600 mm
600 mm x 1200 mm
- Grid System
- T15/24 exposed grid
- Perforation
- Full perforated, 5 cm - 10 cm bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Felt
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
- Certifications
- TSE, CE

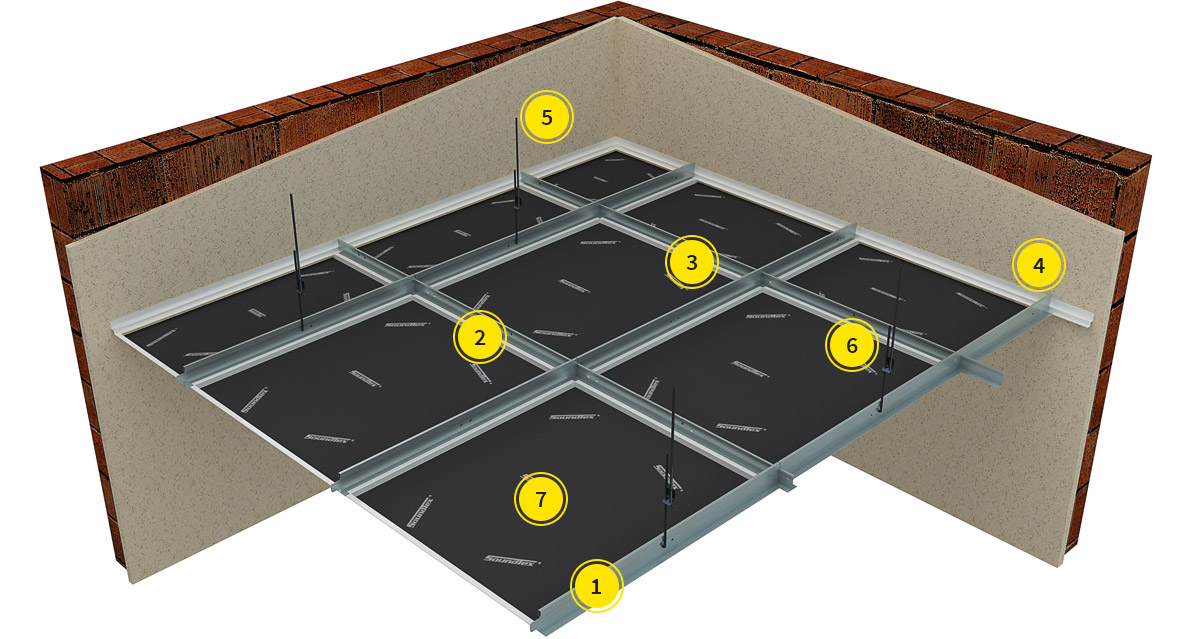

Details
| No | Images | Description | 600x600 mm | 300x300 mm | 300x600 mm | 600x1200 mm | 300x1200 mm |
|---|---|---|---|---|---|---|---|
| 1 |  | T15/24 main tee 3600 mm | 0,83 m | 0,83 m | 0,83 m | 0,83 m | 1,67 m |

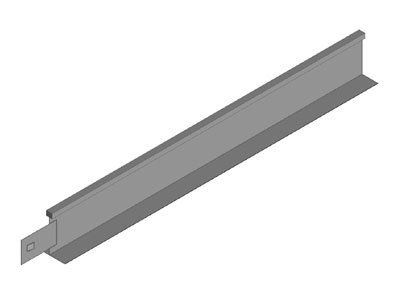

| 2 |  | T15/24 Cross tee 1200 mm | 1,67 m | 3,00 m | 1,67 m | 1,67 m | 3,60 m |
| 3 | | T15/24 Cross tee 600 mm | 0,83 m | - | 2,5 m | - | - |
| 4 | | T15/24 Cross tee 300 mm | - | 2,5 m | 0,7 m | - | - |
| 5 |  | Z or L Wall angle 300 mm | 0,7 m | 0,7 m | 0,7 m | 0,7 m | 0,7 m |

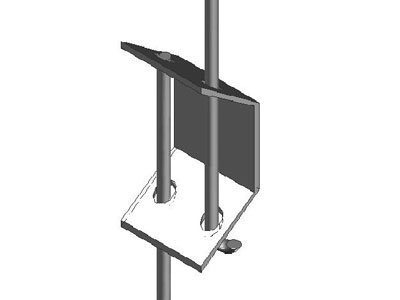

| 6 |  | Double spring | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet |
| 7 | Steel dowel | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet | |

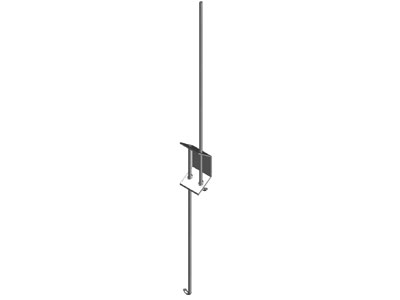

| 8 |  | Hanger wire | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet | 0,7 adet |
| Colors(RAL Code) |
|
