Standard Clip-in System Concealed
General Information
Standard clip-in system consists of a concealed supporting structure where demountable tiles can be clipped into the triangular omega main runner. The grid system is not visible thus providing more aesthetical and plain view comparing to the standard visible grid system. All panels are singularly and independently demountable thus enabling easy and fast access above the ceiling
- Panel Type
- 0.5 ~ 0.7 mm aluminium or galvanised steel
- Panel Ebat
- Width from 300 mm and length up to 2400 mm
Width from 600 mm and length up to 1200 mm
- Grid System
- Grid System
- Perforation
- Full perforated, 5 cm - 10 cm bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Felt
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
- Certifications
- TSE, CE

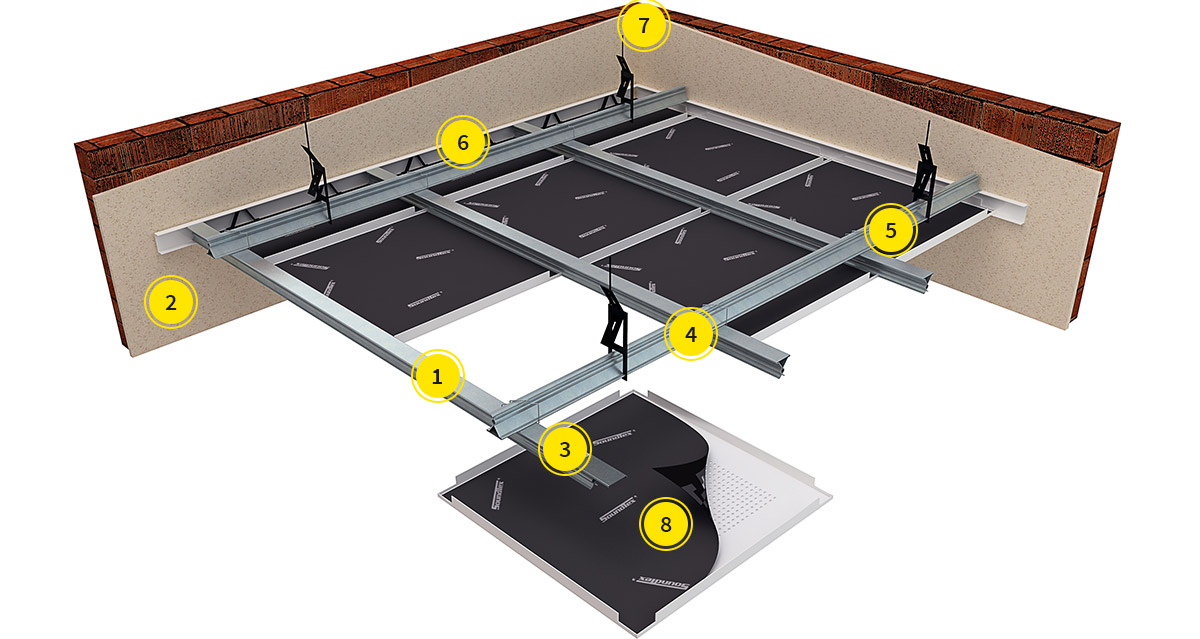

Details
| No | Images | Description | 600x600 mm | 300x300 mm |
|---|---|---|---|---|

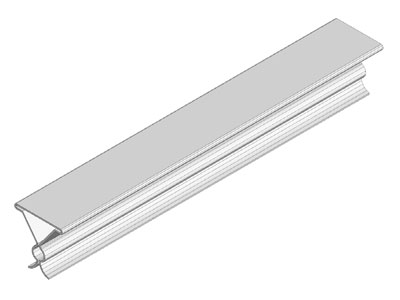

| 1 |  | Omega main tee | 2,5 m | 4,00 m |

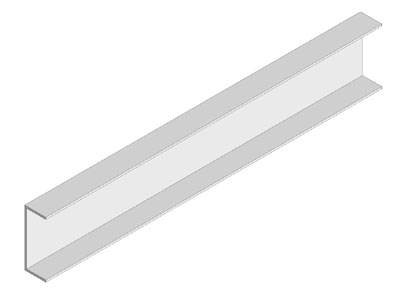

| 2 |  | C Wall-perimeter trim | 0,50 m | 0,50 m |

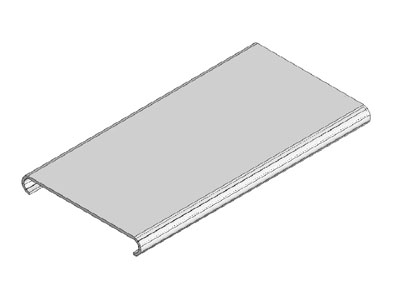

| 3 |  | Main tee connector | 0,5 / adet | 0,7 / adet |
| 4 |  | Clip-in clips | 1,5 / adet | 2,0 adet |

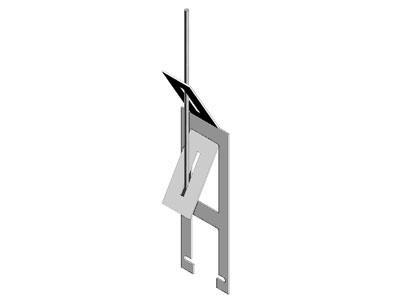

| 5 |  | Quick fixing | 0,7 / adet | 0,7 / adet |

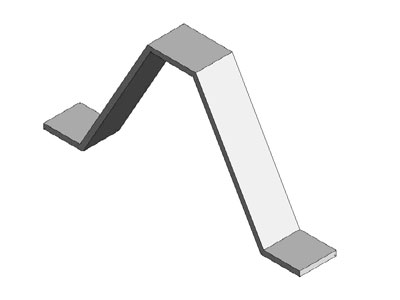

| 6 |  | Pressing spring | 1,0 / adet | 2,0 / adet |
| 7 |  | Hanger wire | 0,7 / adet | 0,7 / adet |
| 8 | Acoustic fleece | - | - | |
| 9 | Steel dowel | 0,7 / adet | 0,7 / adet |
| Colors(RAL Code) |
|
