Panel B - Multipanel
General Information
Multipanel ceiling system consists of varying panel widths. There are 8 different panels which can all be combined on one carrier system ease of installation.The combination of narrow and wider panels on one carrier offers various dimensional effects. Panels can be supplied in any length up to 6000 mm (as standard).Mostly available as aluminium. Multi Panel Ceiling is suitable for all building sectors: Corporate, Transport (airports, metro, bus & train stations), Retail, Leisure, Public space, Hospitality, Healthcare, Education and Residential.
- Panel Type
- Aluminium
- Module
- 30-80-130-180 B
- Perforation
- Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Color
- Standard RAL 9010 ve 9016
- Thickness
- 0,4 mm, 0,7 mm
- Acoustic Fleece
- Soundtex, Lantor or Local brands

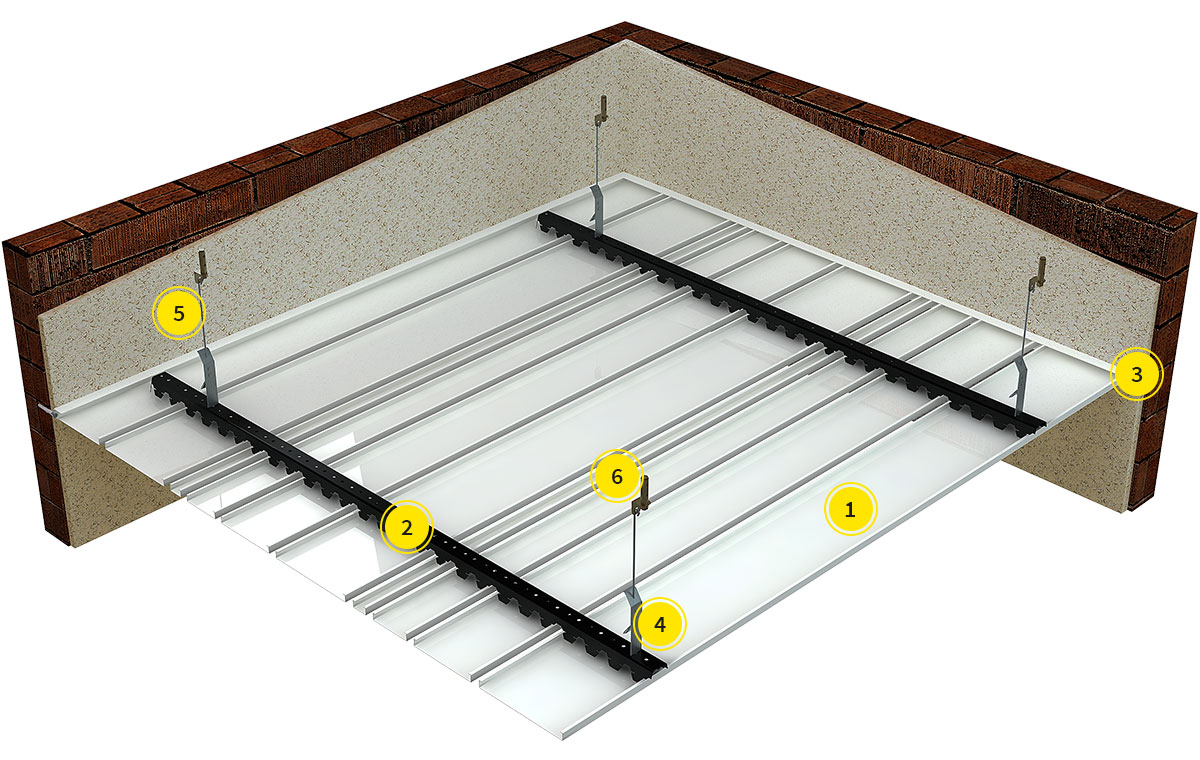

Details
| S.No | Tanım | ||
|---|---|---|---|
| 1 | Panel B 30-80-130-180 | ||
| 2 | Main runner - main channel | ||
| 3 | C Wall angle | ||
| 4 | Hanger | ||
| 5 | Hanger wire | ||
| 6 | Steel dowel |
| Colors(RAL Code) |
|
Montage
Assembly content is being prepared
