Panel C
General Information
The Linear Closed Ceiling SystemClosed aluminium ceiling panels with bevelled edges, when installed creates closed smooth appearanceCombination of 3 widths 75/150/225 mmAll three widths can be clipped to an integrated main carrierPanels can be supplied in any length up to 6000 mm. Mostly available as aluminium. This system is suitable for all wide range of building sectors including Corporate, Transport (airports, metro, bus & train stations) Retail, Leisure, Public space, Hospitality, Healthcare, Education and Residential.
- Panel Tipi
- Alüminyum
- Modül
- 75-150-300 C
- Perforasyon
- Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Renk
- Standart RAL 9010 ve 9016
- Kalınlık
- 0,4 mm, 0,7 mm
- Akustik Kumaş
- Soundtex Kumaş

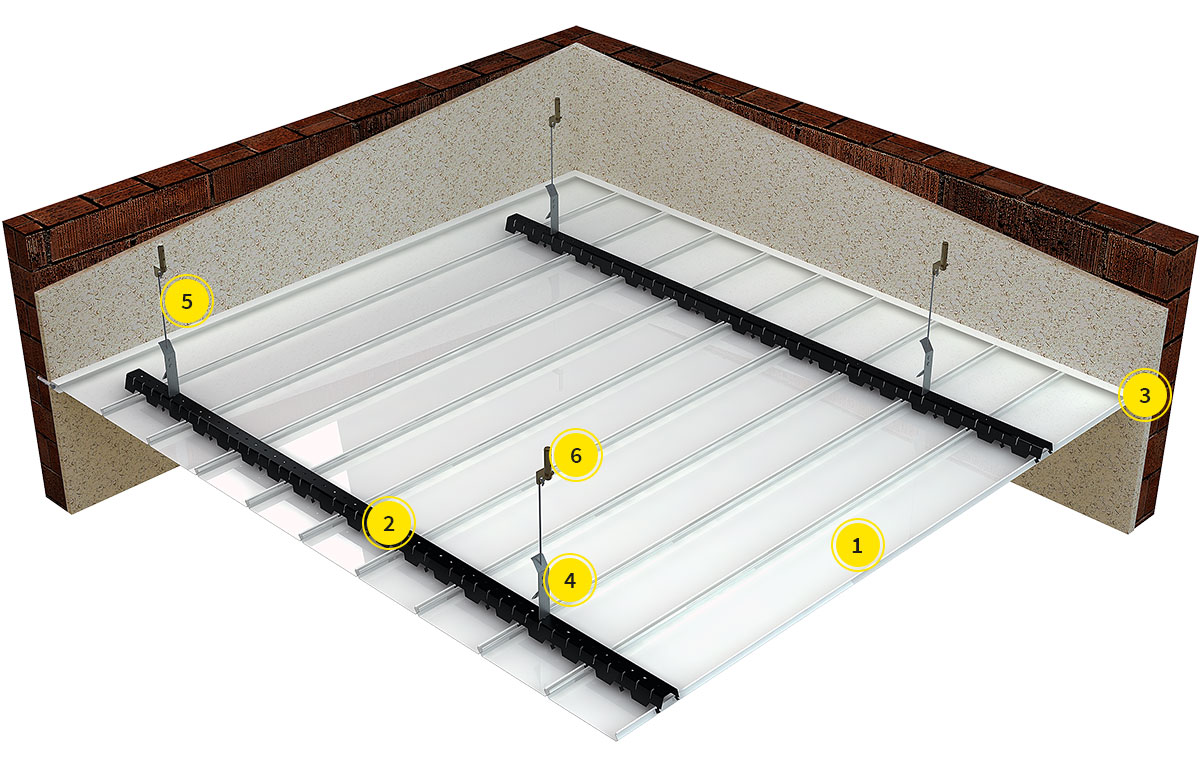

Details
| S.No | Tanım | ||
|---|---|---|---|
| 1 | Panel C 75-150-300 | ||
| 2 | Tırnaklı Taşıyıcı Profili | ||
| 3 | C Köşebent | ||
| 4 | Askı Maşası | ||
| 5 | Askı Tiji | ||
| 6 | Çelik Dubel |
| Colors(RAL Code) |
|
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage
Assembly content is being prepared
