Deltaceir Line

General Information

DELTACEIR is the aluminium open cell ceiling made of closed “Δ” profiles, fully downward demountable. Easy and fast to install, DELTACEIR is ideal for areas where the most simple form of access to the ceiling void is required.

Thanks to its special suspension system, it is also suitable for external applications with excellent results.
The closed shape of the blades drastically reduces the buildup of dust, and so the settling in the space of harmfull products to one's health.

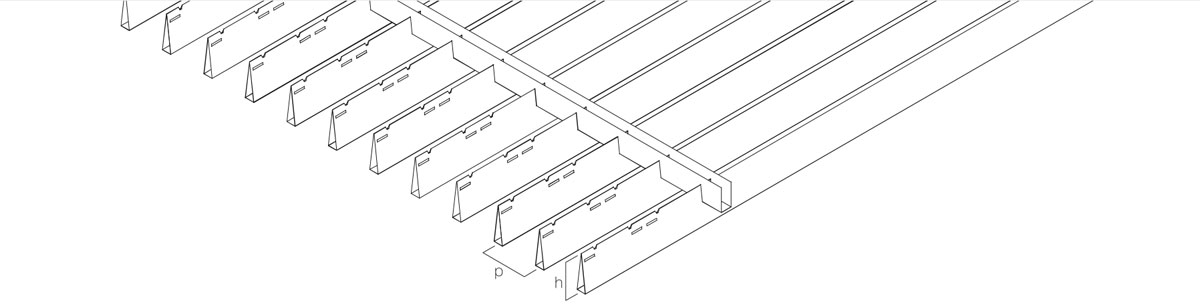

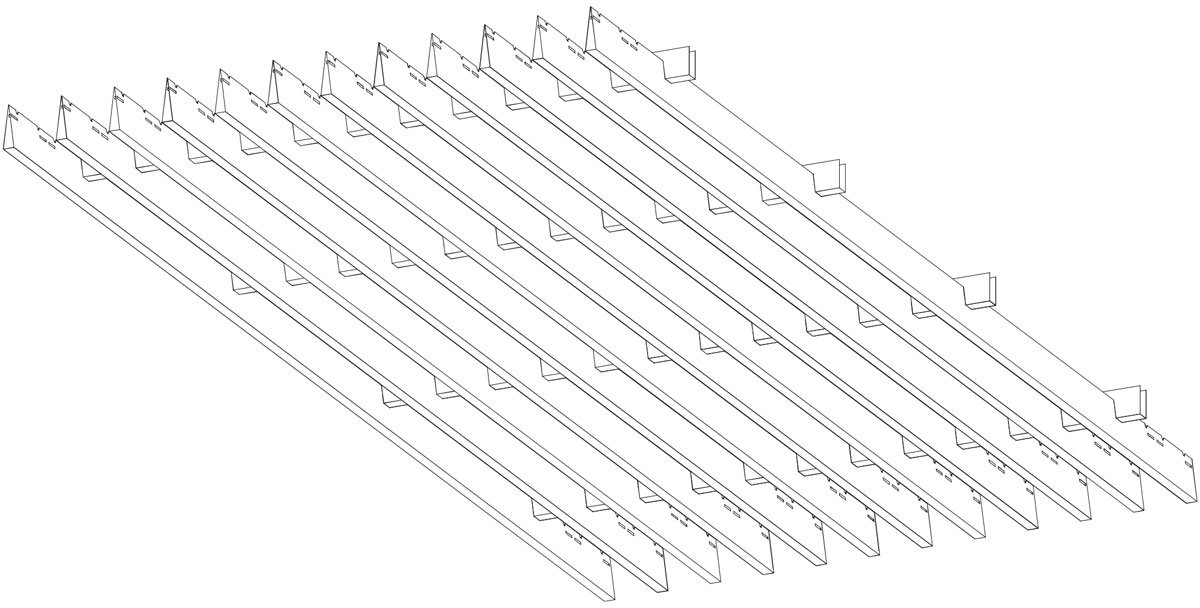

DELTACEIR features 1200x600 mm modular panels, made of closed “Δ” profiles with a base of 4 mm and height of 30 mm, forming square cells in a perfect and trackless appearance.
Cell sizes from 30x30 up to 100x100 mm.
Height 30 mm.

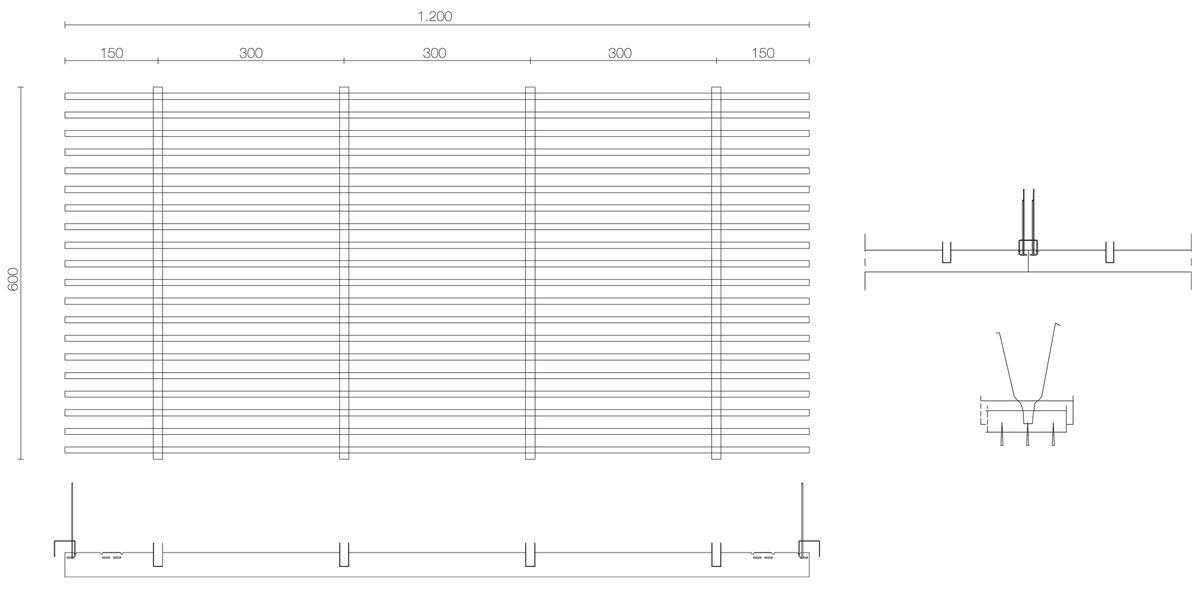

The modular panels, 1200x600 mm, are suspen- ded from the concealed Delta suspension system.

DELTACEIR blades are made by BENDING SYSTEM, which gives:
the accuracy of profiles, more square edges and blades perfectly straight.

A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.

DELTACEIR is usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.

Ceir open cell ceilings are classified incombustible in compliance with international standards.

Specification

Supply form

unassembled / assembled panels

Material

0,40 mm. th. aluminium

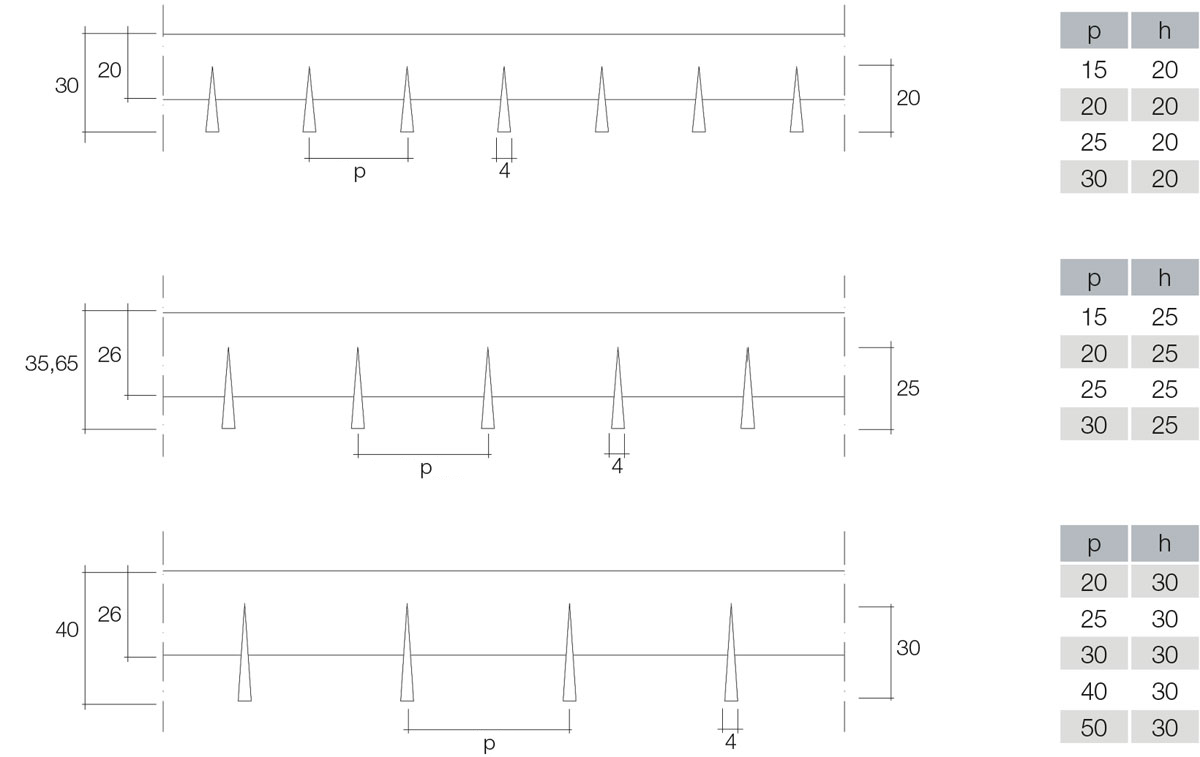

Section blade

"Δ" base 4 (h30) veya (h20) mm

Cell size

... mm.

Panel size

1200x600 mm (standard)

Finish

...

Suspension

Deltasystem

Details

CAD&PDF

Montage

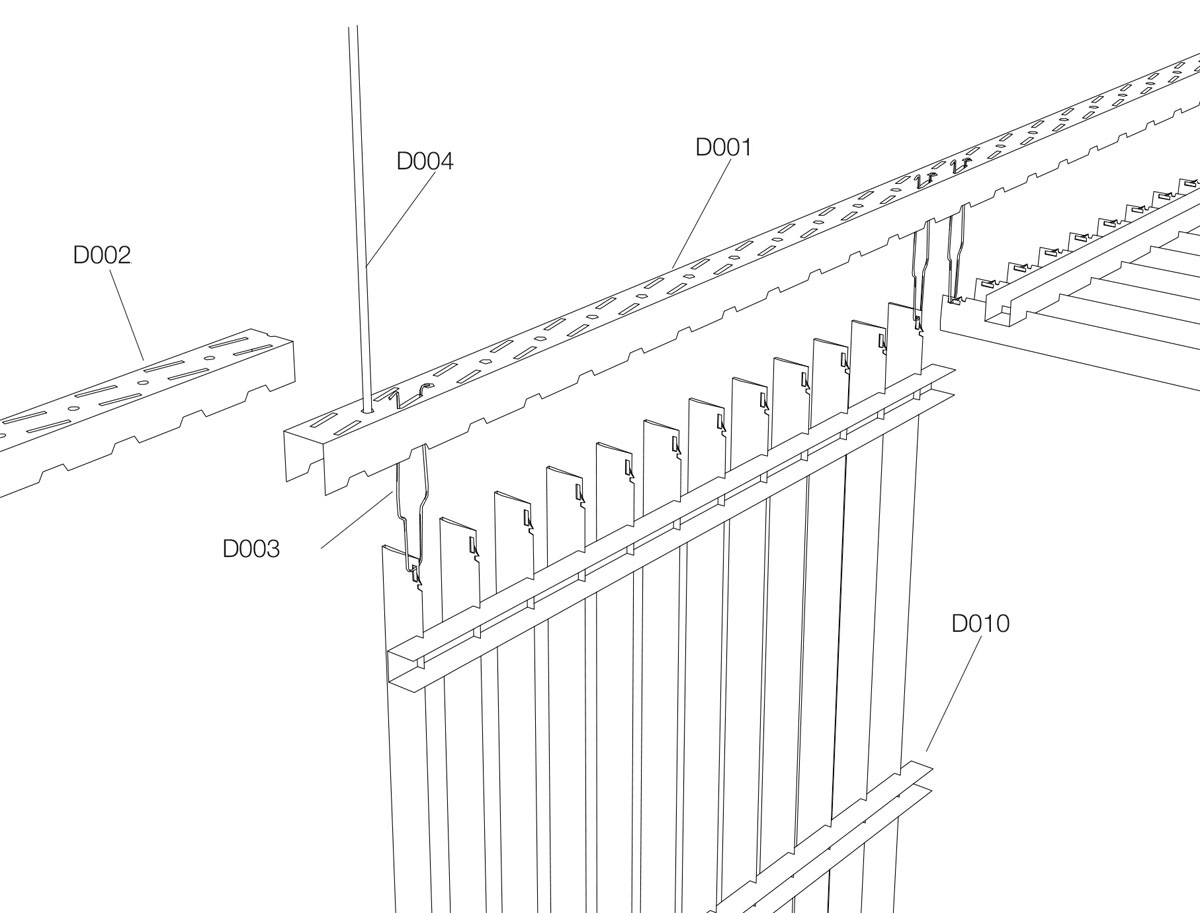

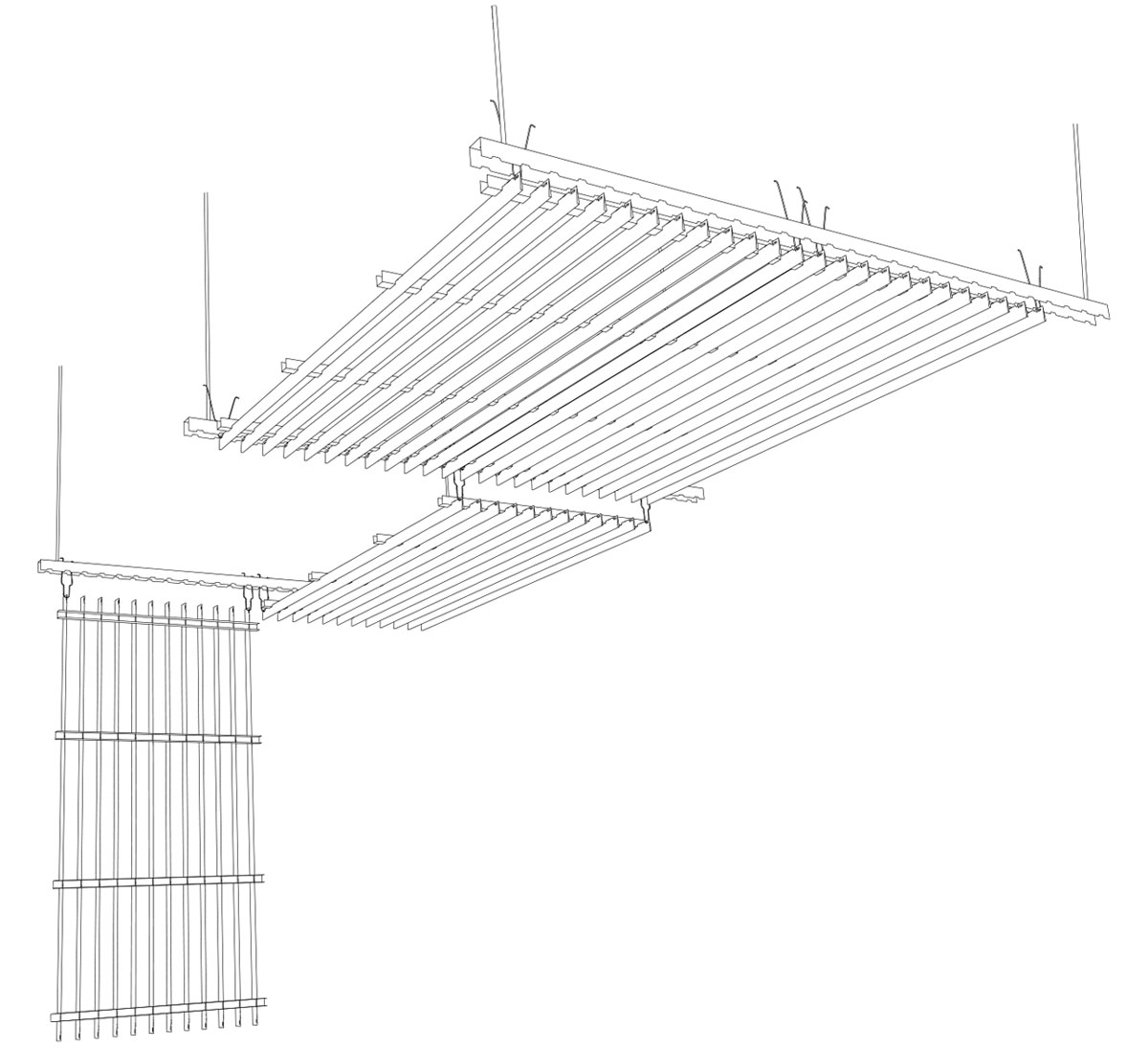

The concealed Delta suspension system allows for easy and fast placement or removal of DELTACEIR. The suspension system gives a trackless appearan- ce and allows for demounting of the panels from below. The minimum free space required for comfortable demounting is 80 mm only.

Documents
