Reflex
General Information
REFLEX is the aluminium open cell ceiling system developed on a new concept.
Thanks to its “V” parabolic shape profiles and the material employed (anti-iridescent semi-specular, anodised aluminium), REFLEX is ideal for settings requiring a high light intensity, like rooms equipped with video terminals, showrooms, shops, banks, etc.
REFLEX ensures a ceiling system with high quality lighting technology and great architectural effect.

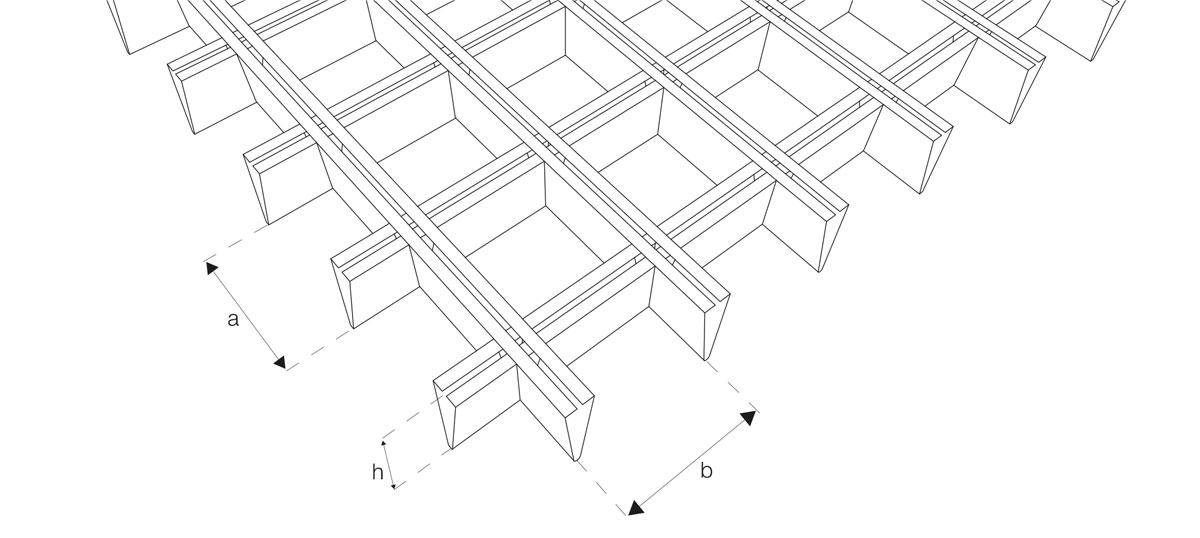

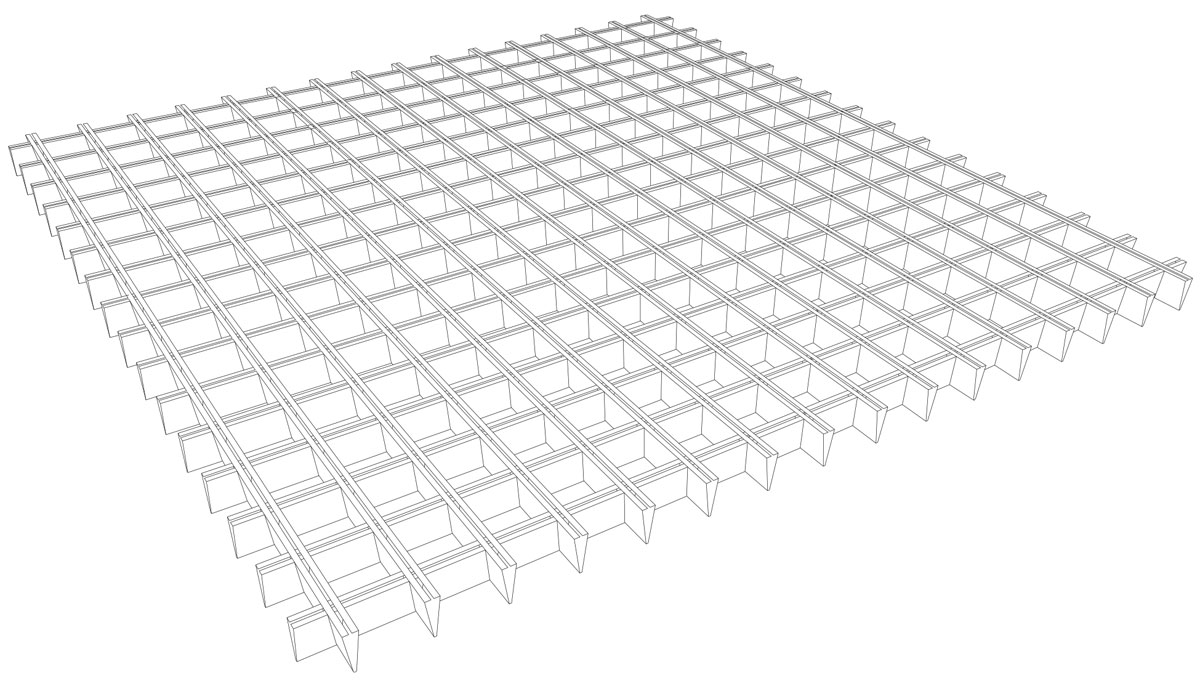

REFLEX features 800x800 or 1200x600 mm modular panels, made of “V” profiles 30 mm high, which suitably assembled form a square cell. Standard cell size 50x50 mm. Height 30 mm. Upon request, special modules and cell sizes are available.
The REFLEX blades are made by BENDING SYSTEM, which gives:
the accuracy of profiles, more square edges and blades perfectly straight.
REFLEX is usually supplied in anti-iridescent semi- specular anodised aluminium or gold finish. REFLEX - LIGHTING SYSTEM
REFLEX excludes any glare, both direct and indirect.
The special paraboliticity of the grill prevents the direct glare and the reflection of lighting on the cei- ling surface.
Thanks to its lighting technology, REFLEX has the double effect of a diffuser for artificial lighting and a diffuser for natural light, with energy saving thanks.
REFLEX is always supplied assembled.
CEIR open cell ceilings are classified incombustible in compliance with international standards.
Specification
- Supply form
- Assembled panels
- Material
- 0,40 mm. th. aluminium

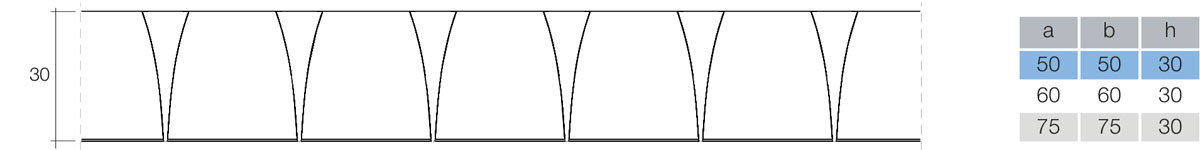

- Section blade
- "V" ve h:30 mm
- Cell size
- 50x50 mm.
- Panel size
- 800x800 mm
1200x600 mm - Finish
- ...
- Suspension
- concealedReflexsystem by T-grids or Delta system

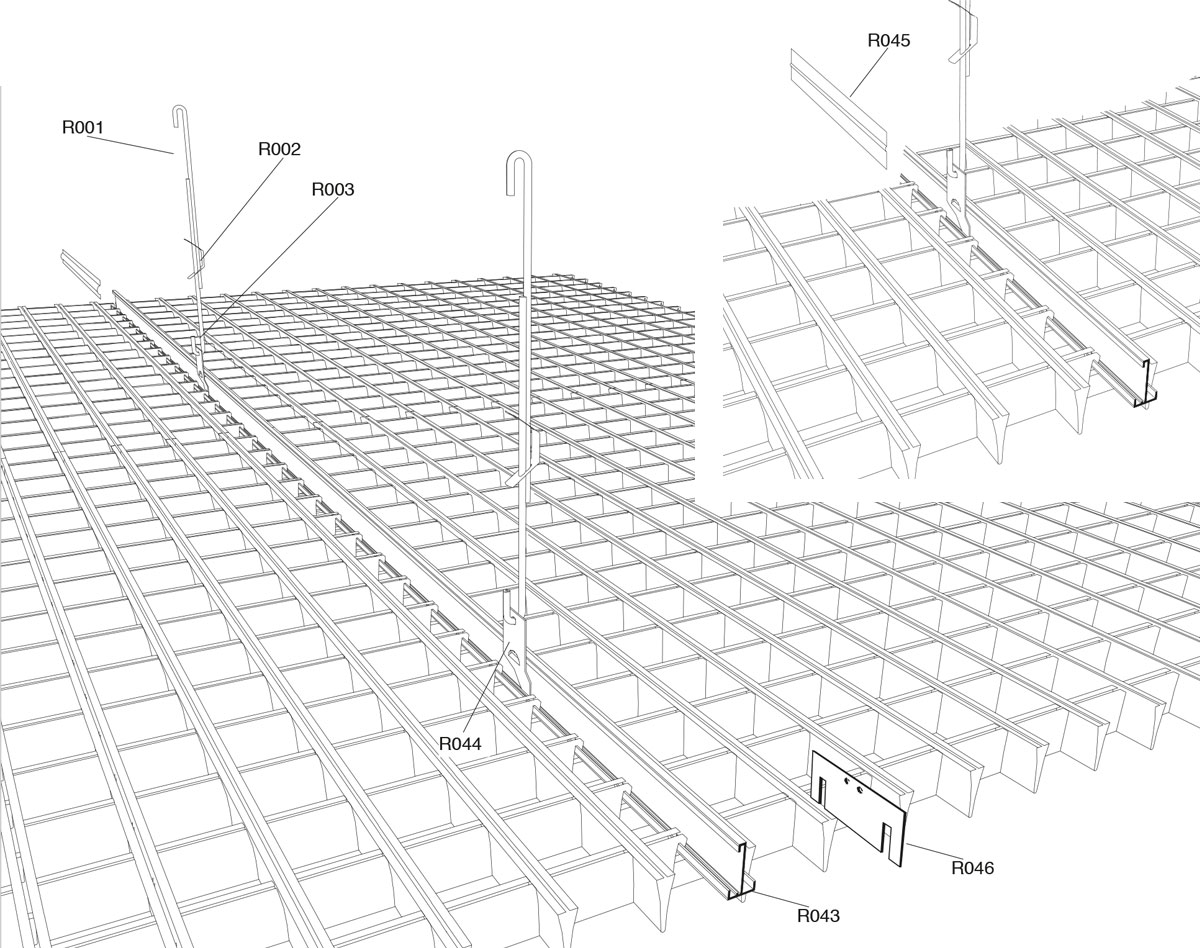

Details
| No | components per sq.m. | Unit | Panel 800x800 |
|---|---|---|---|
| 1 | R001 rod | pc | 0,95 |
| 2 | R002 spring | pc | 0,95 |
| 3 | R003 hook | pc | 0,95 |
| 4 | R043 "T" profile | lm | 1,20 |
| 5 | R044 suspension bracket | pc | 0,95 |
| 6 | splicer for “T” profile | pc | 0,22 |
| 7 | R046 connection bracket (reflex) | adet | 4,60 |
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage

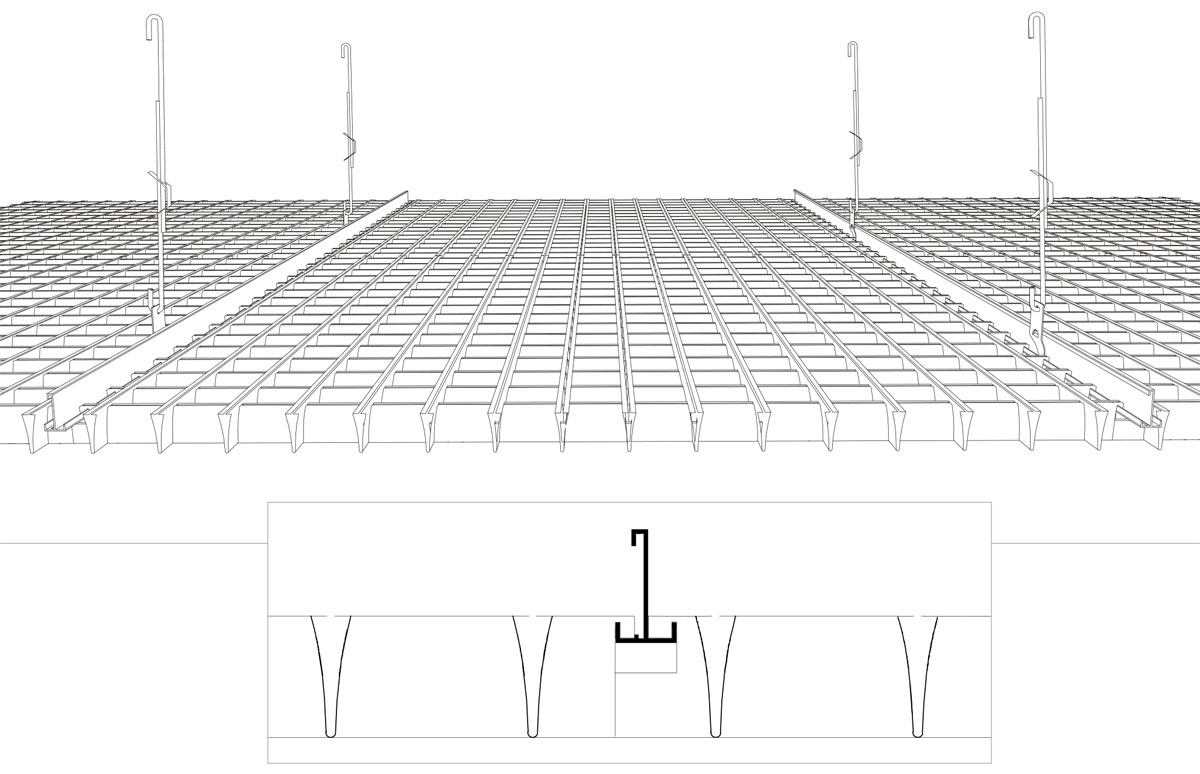

REFLEX is suspended from a concealed suspen- sion system giving a trackless appearance. The concealed Reflex system, by which the panels are installed on extruded aluminium T-profiles, allows for easy and fast placement or removal of the panels. REFLEX can also be suspended from the concea- led Delta suspension system, demountable from below. In this case the standard module is 1200x600 mm.
