Bandraster Systems
General Information
A modern and crea ve ceiling system where panels are allowed to rest on C bandraster pro les with the width size from 100mm to 200mm and length up to 3000mm, providing straight and aesthe c look as well as sharp levelling the panels with the grid pro les. All panels are demountable manually without any special tool so that the system enables fast and easy access to the ceiling void.
- Panel Type
- 0.5 ~ 1.0 mm. Aluminium or galvanised steel
- Panel Size
- Width up to 1250mm.
Length up to 3000mm.
LHeight 30 - 50 mm.
- Bandraster
- 50 - 75 - 100 - 125 - 150mm
- Perforation
- Full perfore, 50 mm. – 100 mm. bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Felt
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
- Certifications
- TSE (EN 13964), CE

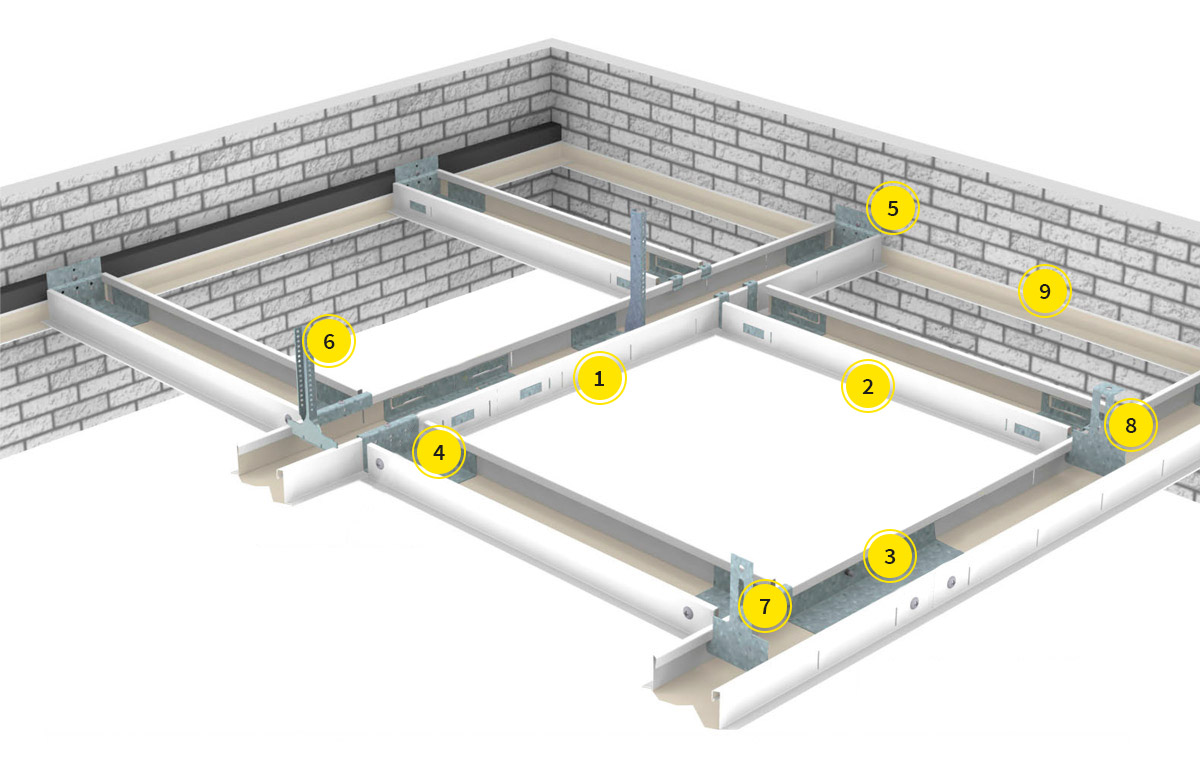

Details
| No | Images | Description | |
|---|---|---|---|

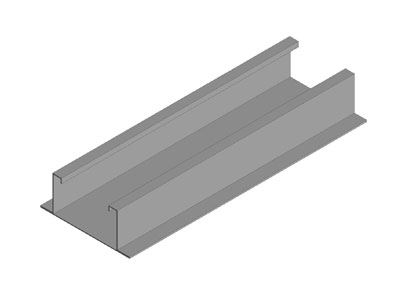

| 1 |  | Bandraster Main Tee 3600mm | |
| 2 | | Bandraster Cross tee Profile Min. 300 Max. 2700mm | |

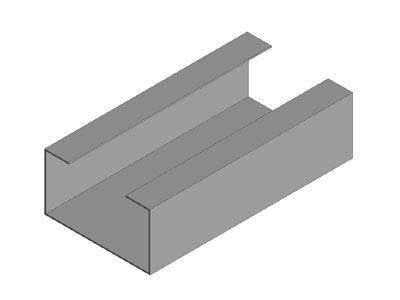

| 3 |  | Ekleme Aparatları | |
| 4 | Taşıyıcı Profilleri Bağlantı Aparatı | ||
| 5 | Duvar Bağlantı Aparatı | ||

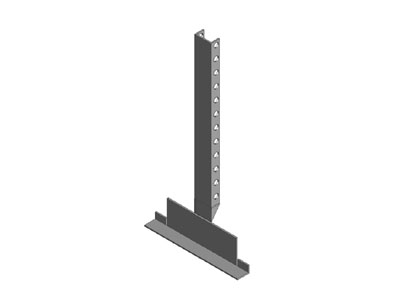

| 6 |  | Nonius Askı Aparatı | |
| 7 | Nonius Quick fixing (Opsiyonel) | ||
| 8 | Nonius Quick fixing (Opsiyonel) | ||

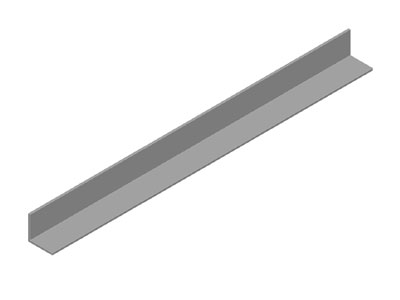

| 9 |  | L Köşebent |
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage
Assembly content is being prepared
