Hook-On Corridor System Concealed
General Information

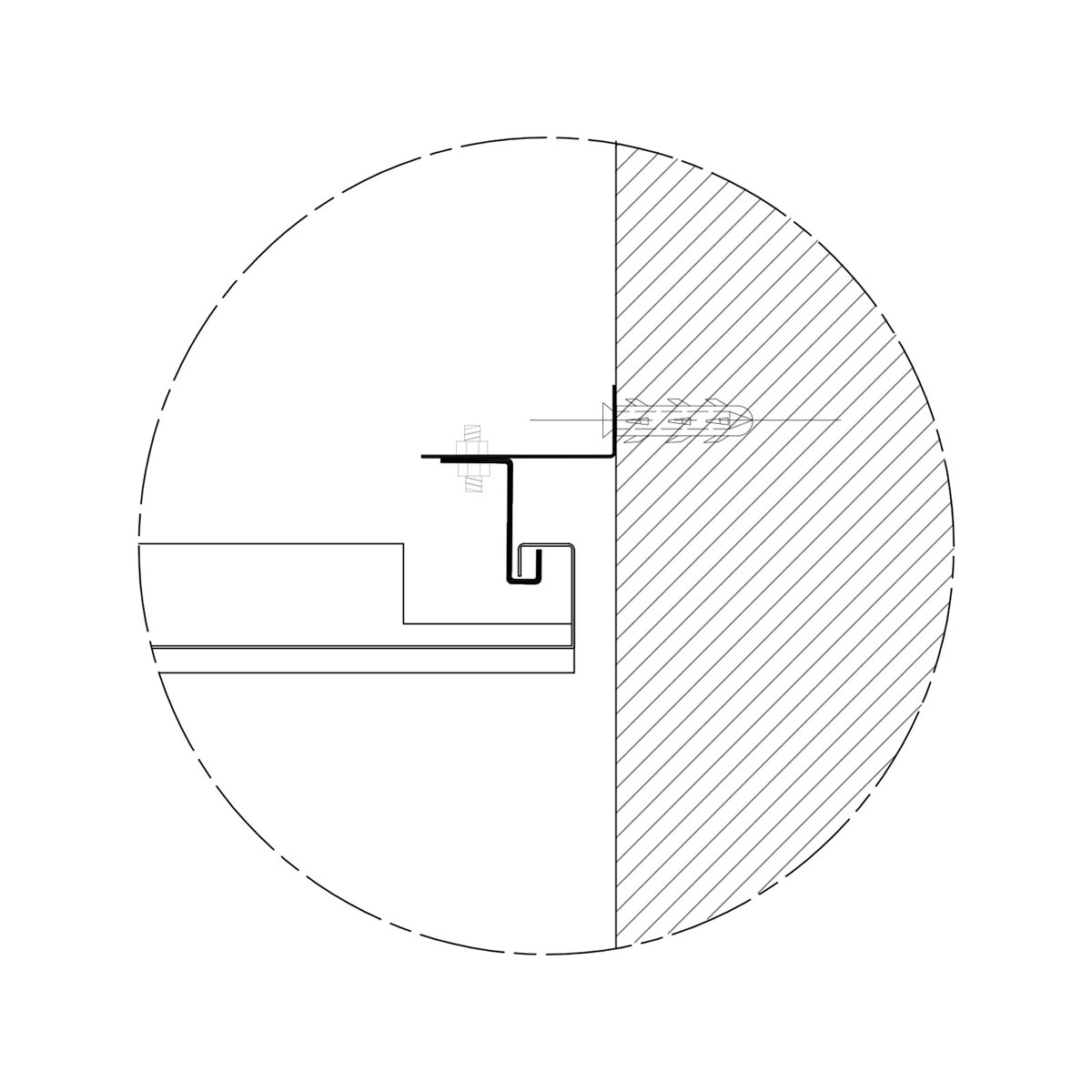

Hook-on corridor system is generated in favour of some spaces for easy and frequent access to the ceiling void where the maintenance points are collected on the corridors. Hook-on profiles are fixed to each side of the walls of the corridors, the panels are longitudinally hanged. Easy access to ceiling void and continuous look makes this system ideal for the corridors.
- Panel Type
- 0.5 ~ 1.0 mm. Aluminium or galvanised steel
- Panel Size
- en 300 – 600 mm.
boy 300 – 2400 mm.
- Grid System
- Concealed grid
- Perforation
- Full perforated, 5cm - 10cm bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Fleece
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable fleece options
- Certifications
- TSE (EN 13964), CE

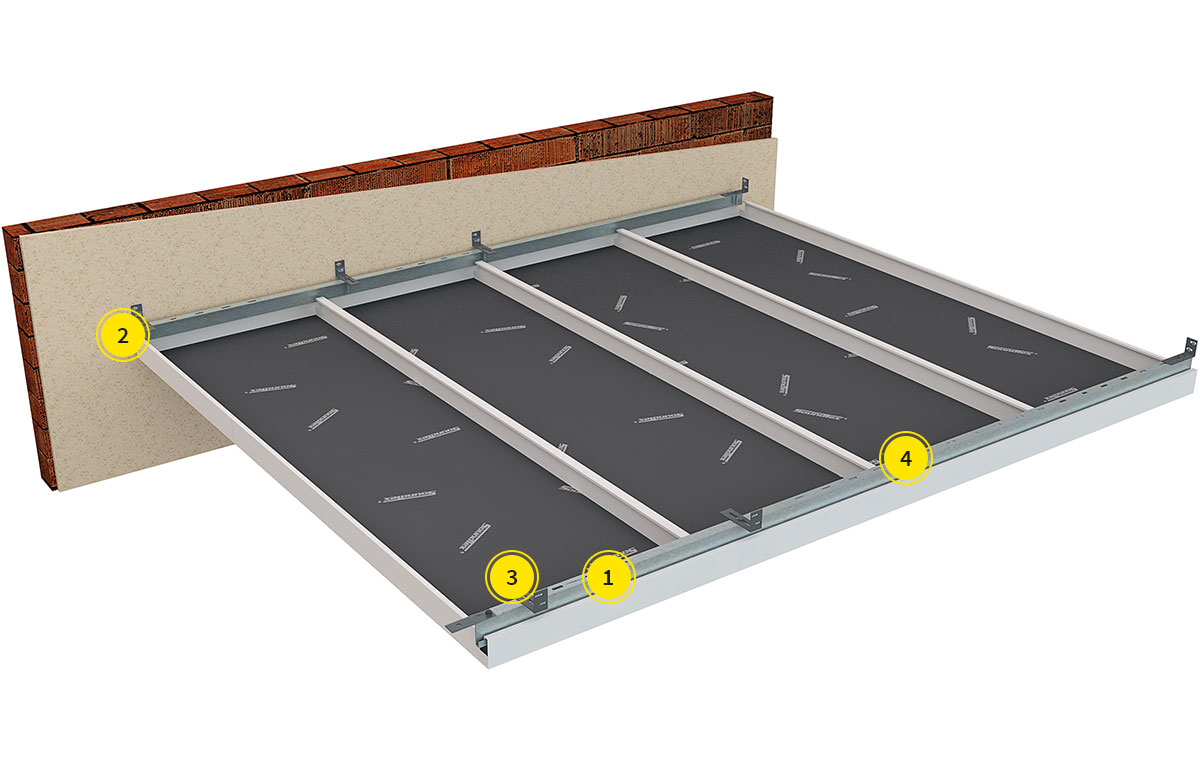

Details
| S.No | Picture | Description | 300x1200 mm | 300x1800 mm | 300x2400 mm |
|---|---|---|---|---|---|
| 1 | Hook-on Z Profile | 1,67 | 1,10 | 0,83 | |
| 2 | Hook-on Z Profile - Splicer | 0,50 | 0,33 | 0,25 | |
| 3 | Hook-on Corridor L Wall connector | 2,00 | 1,40 | 1,00 | |
| 4 | Screw + Nut | 2,00 | 1,40 | 1,00 |
| Colors(RAL Code) |
|
