Hook-On System Concealed

General Information

Hook-on system is used for large spaces where there is a need for frequent access to the ceiling void. It is a concealed system, panels are fully demountable with the help of a hooked grid profile hanged to the aluminium or galvanised steel panels. This system enables the installation of larger panels with the size 300 mm to 1800 mm in length.

Panel Type: 0.5 ~ 0.7 mm aluminium or galvanised steel
Panel Size: Width from 300 mm and length up to 2400 mm.
Width from 600 mm and length up to 1200 mm.

Grid System: Concealed grid
Perforation: Full perforated, 5 cm - 10 cm bordered, non-perforated
Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.

Acoustic Felt: Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
Certifications: TSE (EN 13964), CE

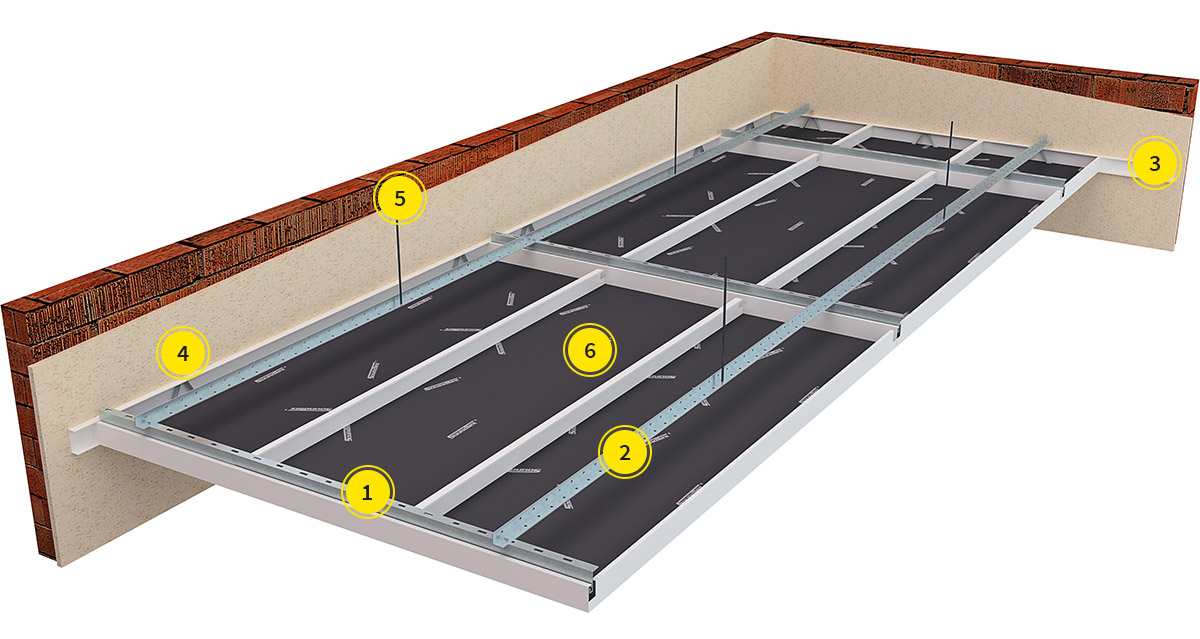

Details

No	Description	300x1200 mm	300x1800 mm	600x600 mm	600x1200 mm	900x900 mm

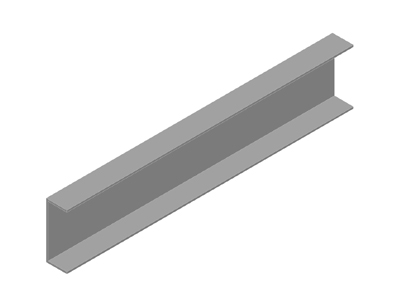

1	Hook-on C Profile	0,70	0,70	0,70	0,70	0,70

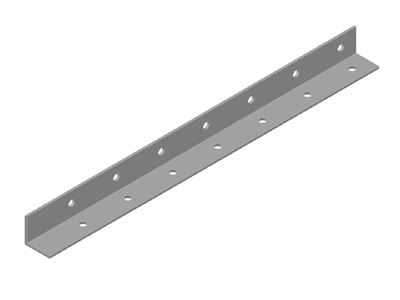

2	Hook-on L Main tee	0,83	0,83	0,83	0,83	0,83

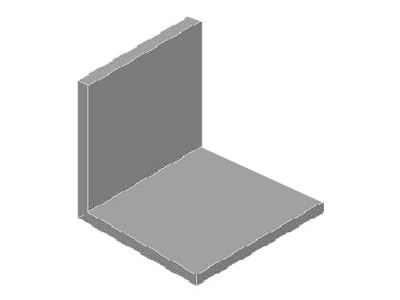

3	Hook-on L Profile - Splicer	0,30	0,30	0,30	0,30

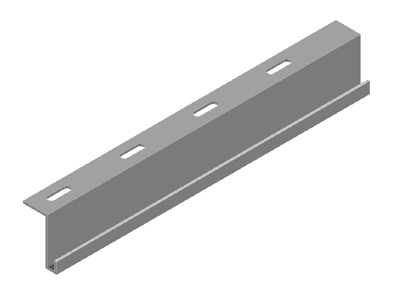

4	Hook-on Z Profile	0,83	0,55	1,67	0,83	1,10

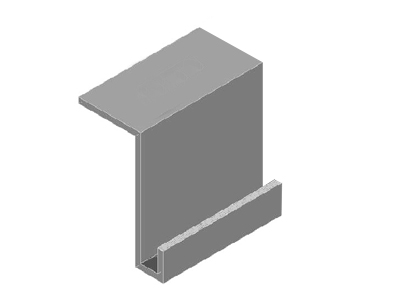

5	Hook-on Z Profile - Splicer	0,30	0,20	0,55	0,30	0,40

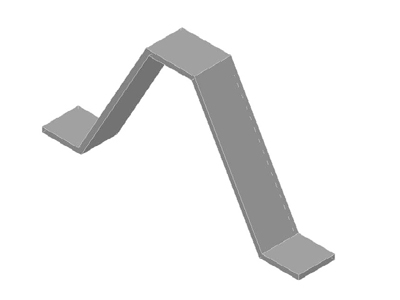

6	Pressing spring	-	-	-	-	-
7	Screw + Nut	2,20	1,80	3,30	2,20	2,60
8	M6 Wire - Dowel	0,80	0,80	0,80	0,80	0,80
9	M6 Hanger Wire	0,80	0,80	0,80	0,80	0,80
10	M6 Nut + Rondela	1,60	1,60	1,60	1,60	1,60
