Extruded Tube
General Information
Tube system is a visually eye-catching linear ceiling system constructed from extruded tube pro les suspended to a basic hook-on ceiling suspen- sion system. The tube design allows the air circulation in the room through the ceiling void. This is also useful for smoke extraction when this is the case. Tube system is hanged onto the main runner pro les, those are suspended from the so t at 1200mm centres.
- Extruded Tube Type
- 0.5 ~ 1.0 mm. aluminium, galvanised or stainless steel
- Extruyon Tube Size
- tube Ø 25 mm. / Ø50 mm.
size 3000 mm.. - Grid System
- Galvanized steel Z and L pro les, RAL 9005 black.
- Perforation
- n/a
- Color
- Tube pro ller elektrostatik toz boya ile istenilen RAL kodunda boyanabil- mekte veya ahşap transfer boya veya özel antibakteriyel boya ile işlenebil- mektedir. Standart RAL9010 renkte sunulmaktadır.
- Acoustic Felt
- no
- Certifications
- TSE, CE
Details

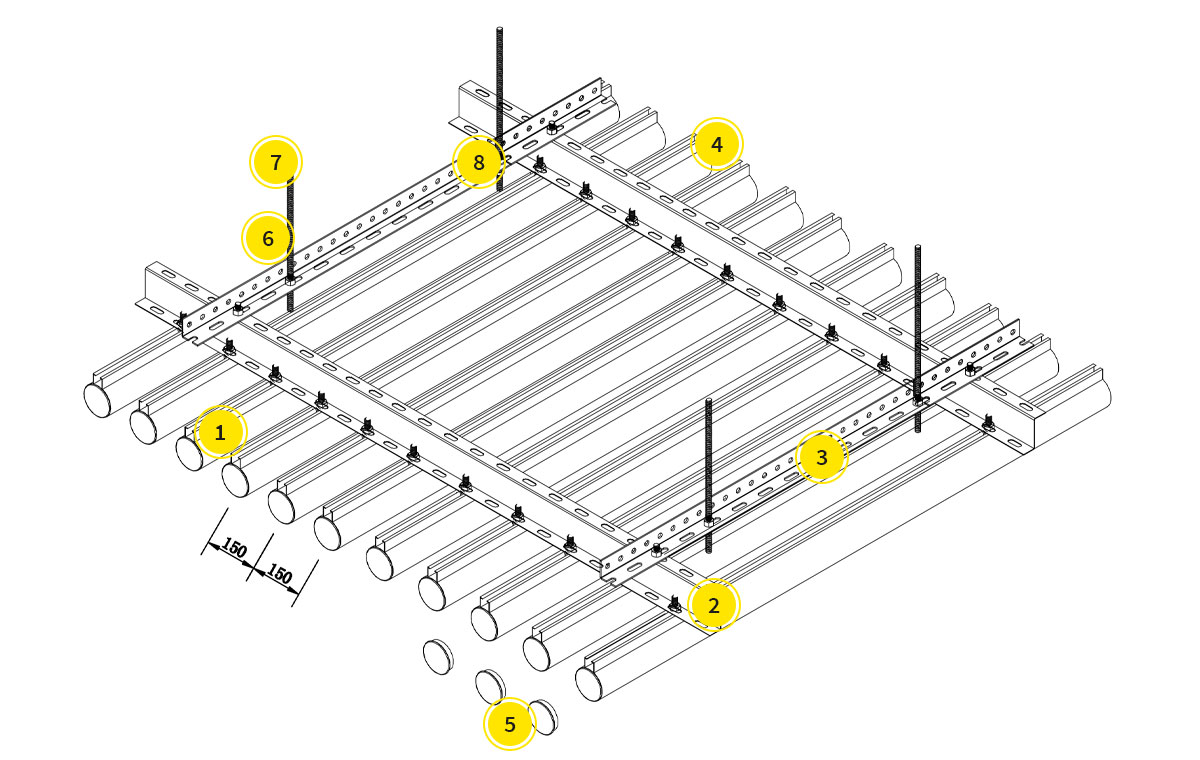

| No | Images | Description | Length | Tube Distance | Weight (Kg./tane) |
|---|---|---|---|---|---|
| 1 |  | 25mm Ø Tube (RAL 9010) 50mm Ø Tube (RAL 9010) | 3000mm | all | 0,30 0,60 |
| 2 |  | Tube Main Runner Z (RAL 9005) | 3000mm | all | 0,76 |
| 3 |  | Tube Main Runner L (RAL 9005) | 3000mm | all | 0,64 |
| 4 |  | 25mm Ø Tube Splice (RAL 9010) 50mm Ø Tube Splice (RAL 9010) | all | 0,03 0,006 | |
| 5 |  | 25mm Ø End Cap (RAL 9010) 50mm Ø End Cap (RAL 9010) | all | 0,005 0,01 | |
| 6 |  | Hanger Rod 100cm, M6 | all | 0,20 | |
| 7 |  | Fixing Dowel M6 | all | 0,05 | |
| 8 |  | Bolt, Nut, Washer | all | 0,03 |
Montage
Assembly content is being prepared
