Spiked Baffle
General Information

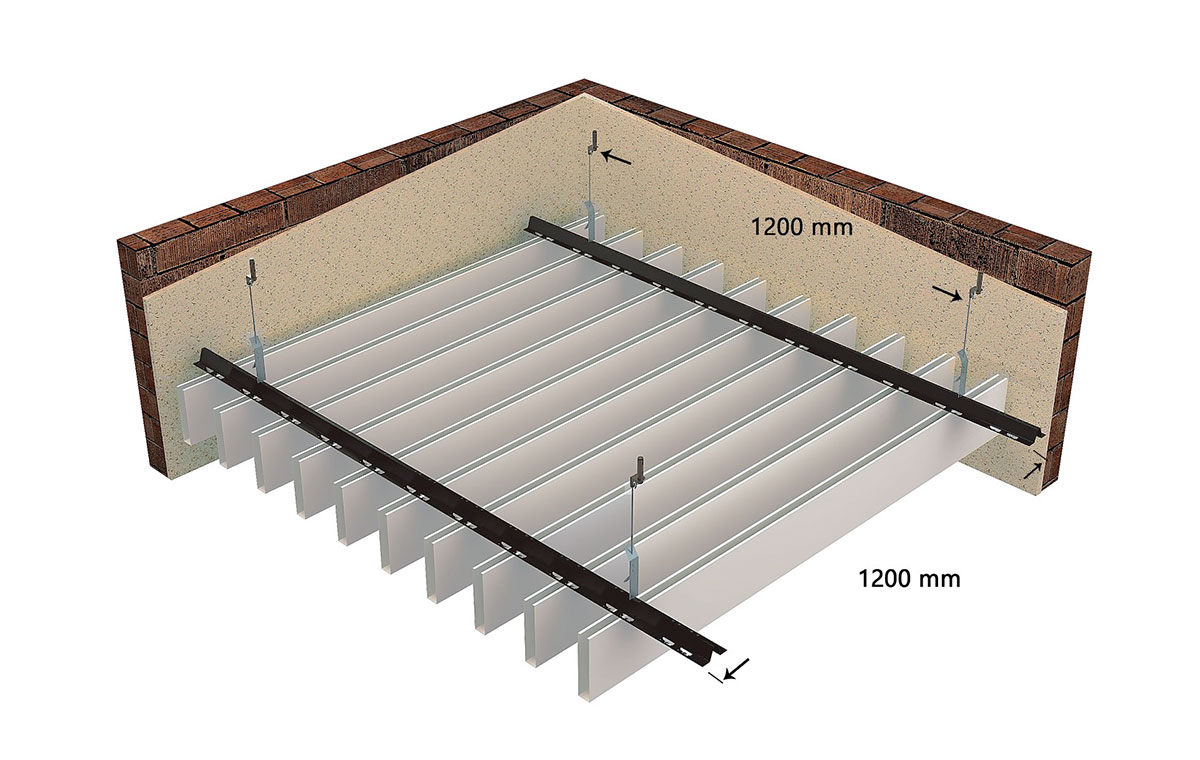

Baffle and vectorial ceiling systems are made of vertically installed panels in different sizes. A light - weight and floating ceiling system which visually reduces the room height whilst retaining the actual room volume. It is specially designed to hide ser - vices installations such as pipes, lighting and ac/ hvac etc. with a directional approach. Panels are floating on the ceiling with a lineer view and offering a spacious environment. Also baffles with wooden look are available so that the users have more durable and easy maintenance ceiling elements. Different design options can be provided by chang - ing the base sizes of the u profiles, height and the gap between to baffles. Both baffle and vectorial systems enable easy access to the plenum and easy demountability.
- Panel Type
- 0.5-0.8 mm aluminium galvanised or stainless steel

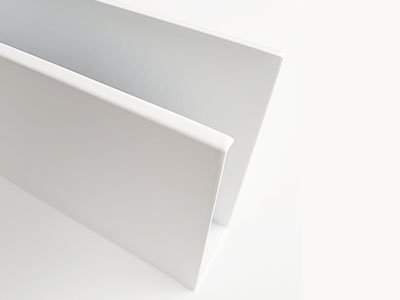

- Panel Size
- U profile base width 18-100 mmU profile height 30-600 mm
- TSuspension System

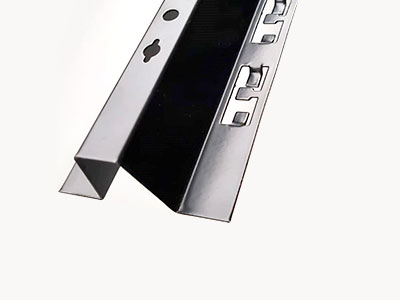

- Spiked carrier
- Perforation
- Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Acoustic Felt
- Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
- Certifications
- TSE , CE
Montage
Assembly content is being prepared
