Tetral B
General Information

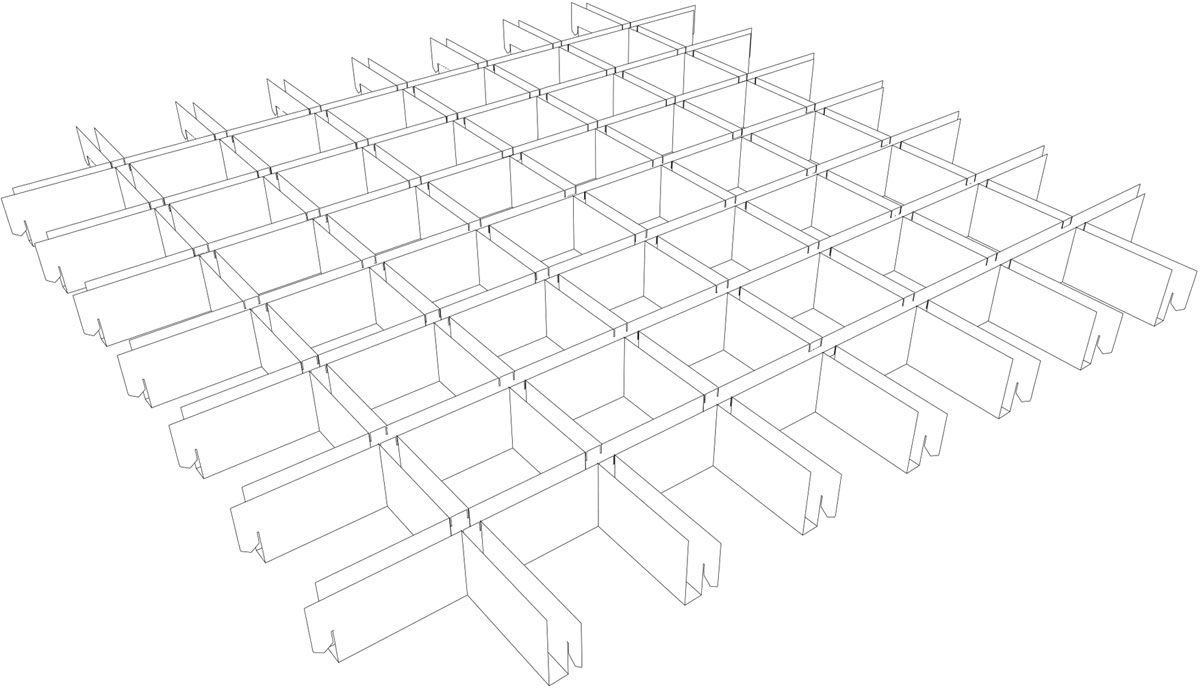

TETRÁL b is the aluminium open cell ceiling inspi- red in the classic wooden grid , made up of “U” shaped profiles with a base and height depending on application.
The multiple choice of type, cell size and finish offers designers and architects a host of possibili- ties in line with the criteria of integrated architectu- re. The concealed suspension system, with main and cross runners made from the same profiles as the panels, gives a perfect and trackless appearan- ce.
TETRÁL b blades are made by BENDING SYSTEM, which gives: the accuracy of profiles, more square edges and blades perfectly straight. TETRÁL b can be supplied either plain or perfora- ted, to achieve aesthetic and acoustic require- ments.

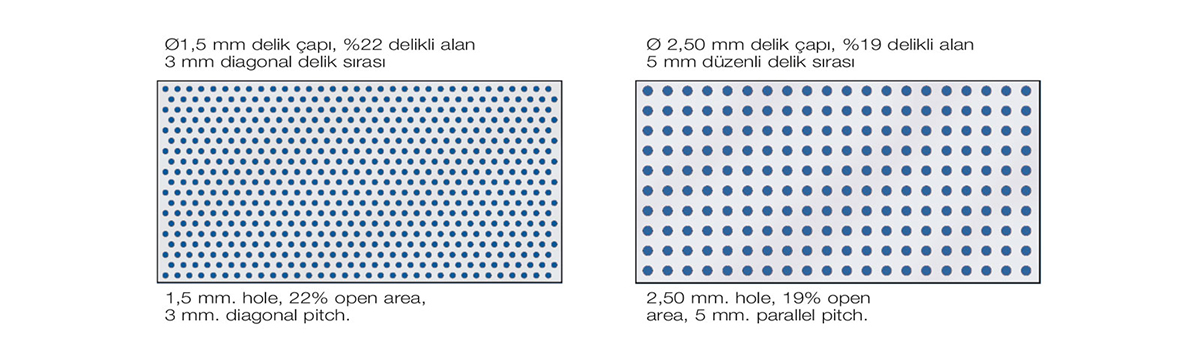

Hole ø 1,50 mm, 22% free opening, 3 mm pitch.
Hole ø 2,50 mm, 19% free opening, 5 mm pitch.
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.
TETRÁL b is usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.
CEIR open cell ceilings are classified incombustible in compliance with international standards.
Specification
- Supply form
- Petek haline getirilmiş, hazır
- Material
- 0,40/0,80 mm kalınlıkta aluminyum
- Section blade

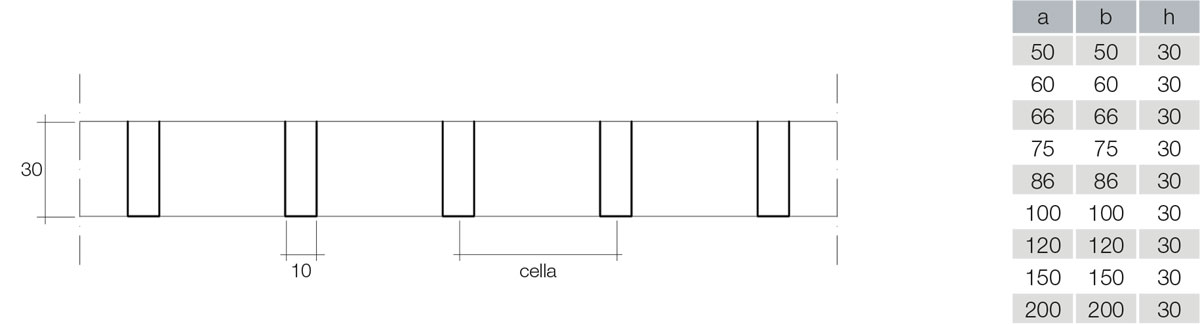

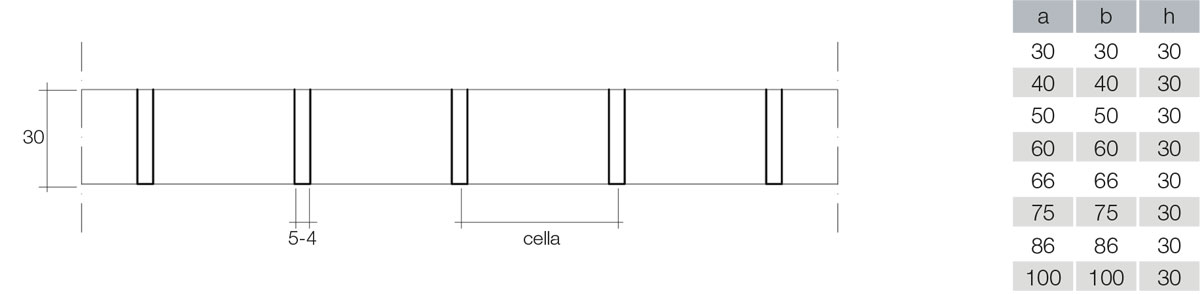

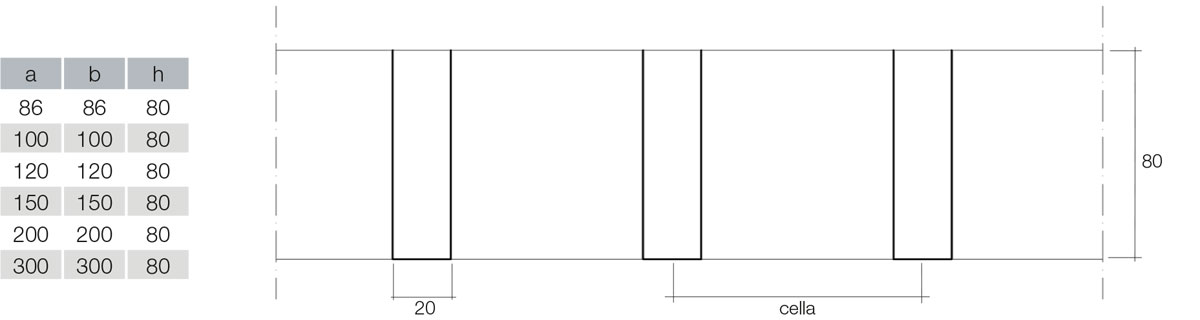

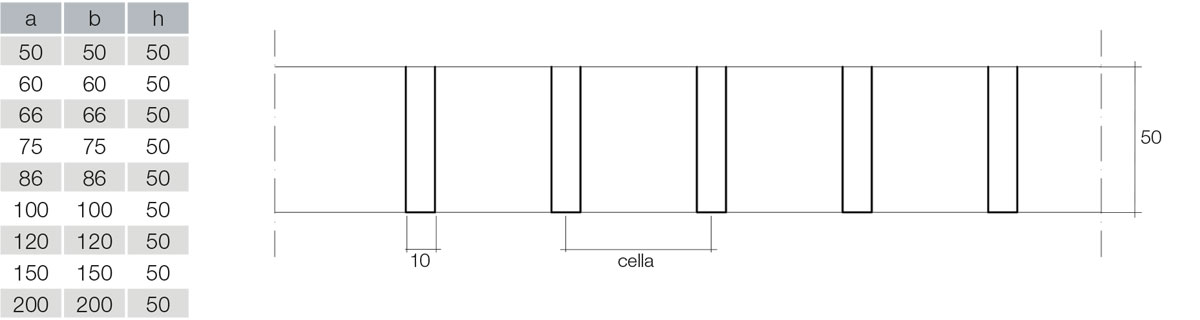

- "U", 4/5/10/12/20mm ve h: --mm
- Cell size

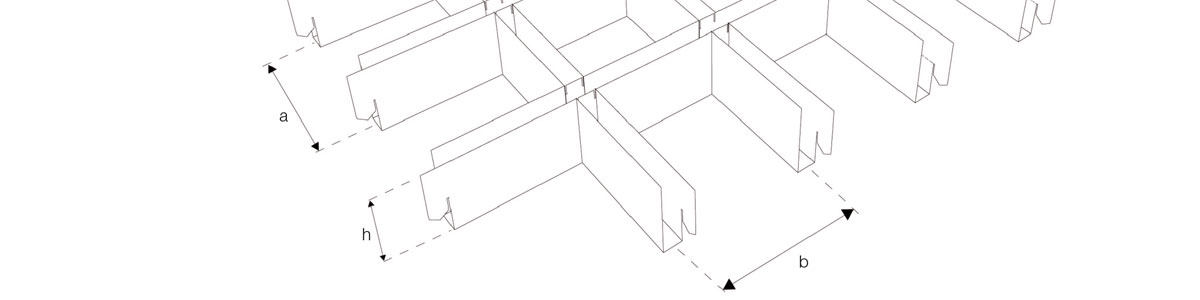

- ..x.. mm.
- Panel size
- 600x600mm ve 1200x600mm
- Finish
- ...
- Suspension
- concealed suspension by main and cross runners
Details

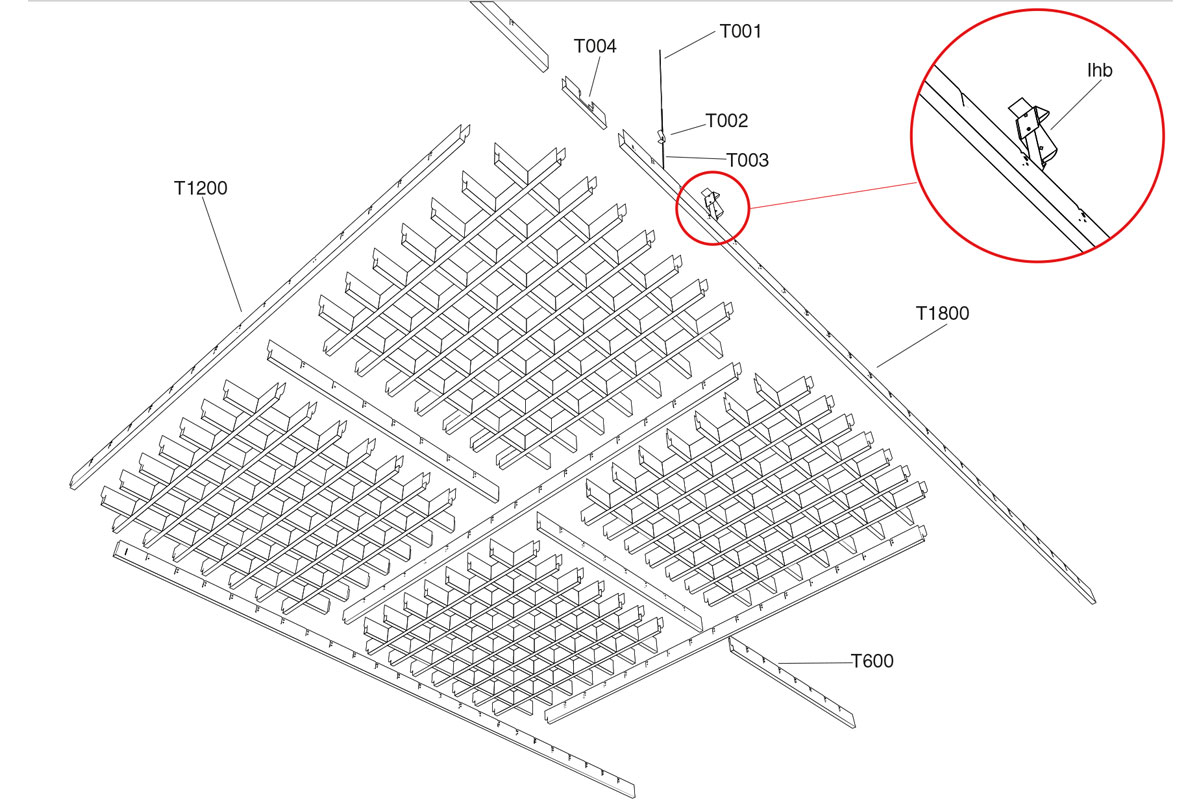

| No | components per sq.m. | unit | cell 30-66 | cell 75-300 | Panel |
|---|---|---|---|---|---|
| 1 | T001 rod | pc | 2,00 | 1,00 | 600x600 |
| 2 | T002 spring | pc | 2,00 | 1,00 | 600x600 |
| 3 | T003 hook | pc | 2,00 | 1,00 | 600x600 |
| 4 | splicer for | pc | 0,94 | 0,47 | 600x600 |
| 5 | T1800 main runner | pc | 0,94 | 0,47 | 600x600 |
| 6 | T1200 cross runner | pc | - | 1,38 | 600x600 |
| 7 | T600 cross runner | pc | 2,70 | 1,38 | 600x600 |
Montage
The TETRÁL b ceiling features fully integrated suspension system, with main runners (T1800 mm length) and cross runners (T1200/T600 mm length) made from the same profiles as the panel. Rows of main runners are installed at 1200 (or 600) mm centres, while the cross runners are clicked in- between the main runners at 600 mm. The TETRÁL b panels can be also suspended from the concealed Delta suspension system, demoun- table from below. In this case the standard module is 1200x600 mm.
