Tetral Inverse
General Information
INVERSE is the inverse solution of Tetral 15 ceiling system, made up modular panels which are fully downward demountable.
Thanks to its “∏” shaped inverse profiles, INVERSE provides the best solution between functional and decorative purposes.
Ideal for high style projects or for areas requiring periodic access to the plenum above open cell cei- ling.

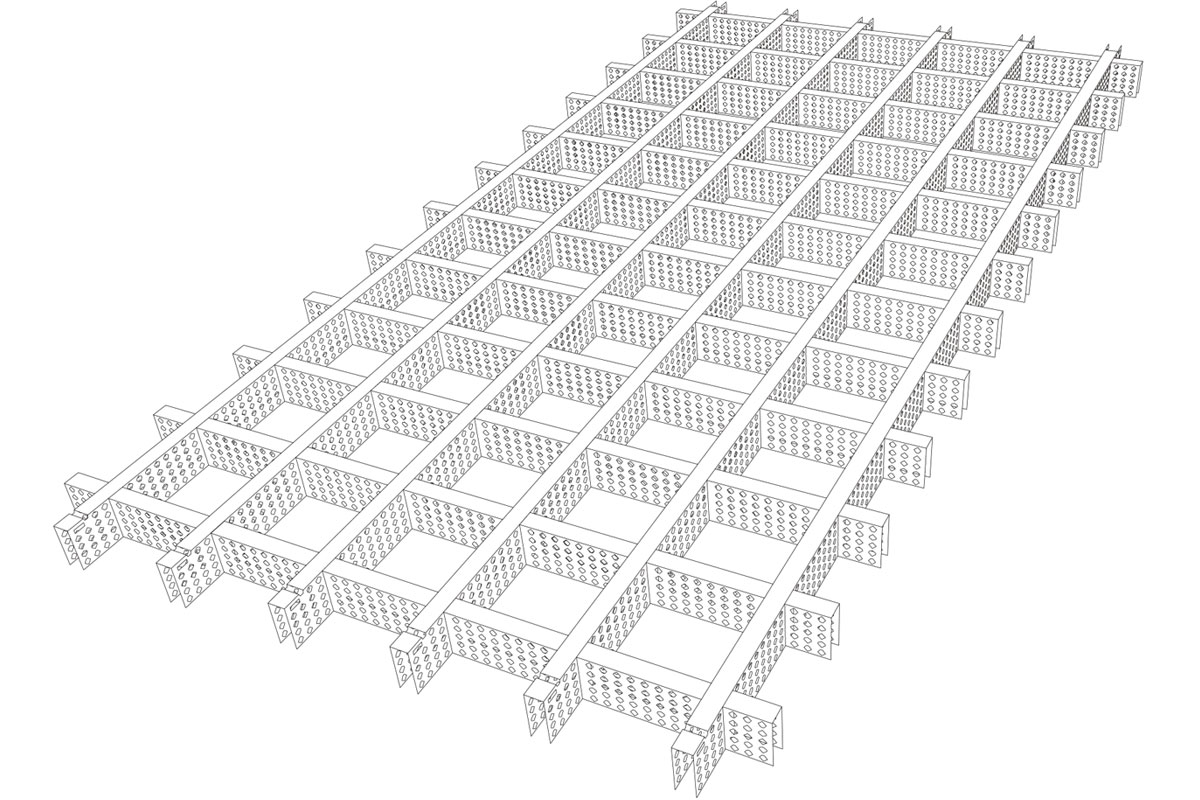

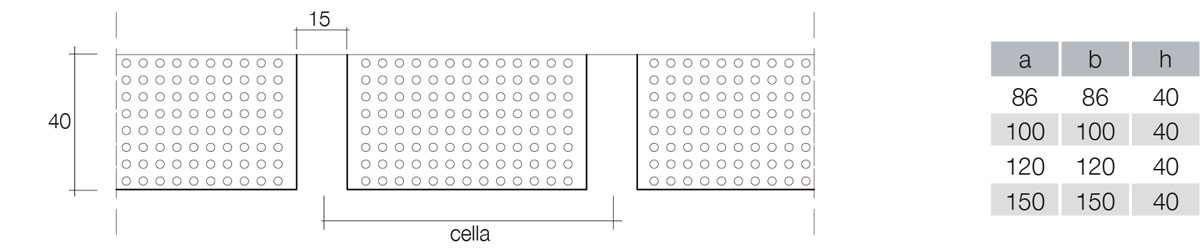

INVERSE features 1200x600 mm modular panels, made up of “∏” shaped blades 15 mm base and 40 mm height, which suitably coupled form a square cell.

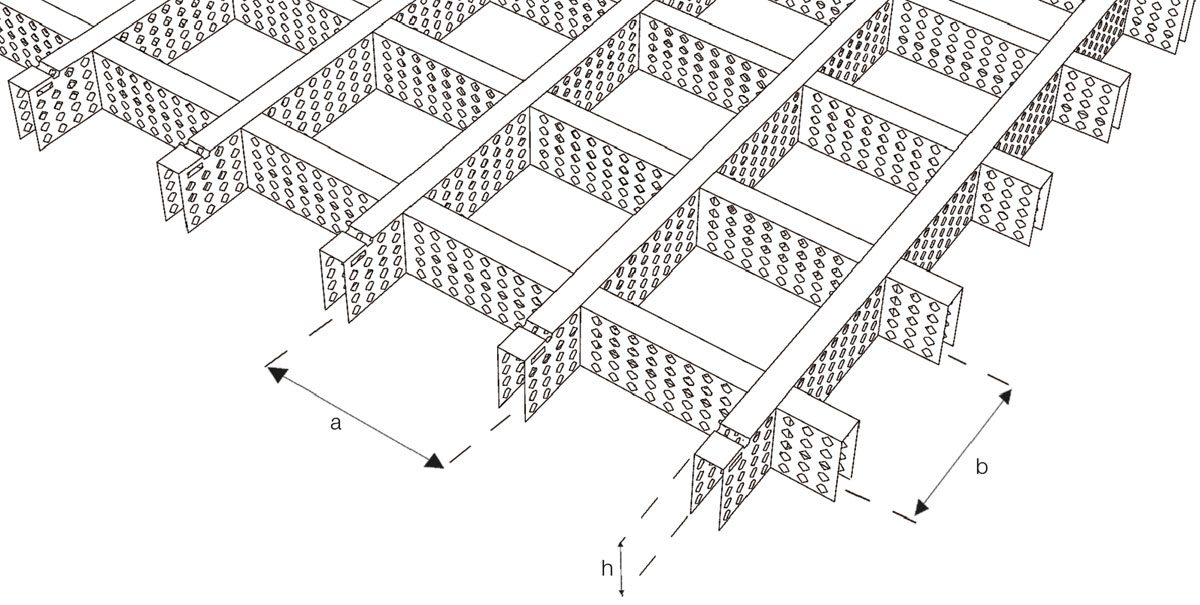

Cell sizes are available from 86x86 mm up to 150x150 mm. Height 40 mm.
The modular panels 1200x600 mm are suspended from the concealed Delta suspension system
The TETRÁL INVERSE blades are made by BEN- DING SYSTEM, which gives: the accuracy of profi- les, more square edges and blades perfectly straight.
Hole 1,50 mm, 22% free opening, 3 mm pitch
Hole 2,50 mm, 19% free opening, 5 mm pitch.
The inner and outer of blades can be of same colour, or in different colours for every decorative purpose. Standard finishes:
inner blue RAL 5012 and outer silver RAL 9006 inner natural aluminium and outer black RAL 9005.
INVERSE is usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.
CEIR open cell ceilings are classified incombustible in compliance with international standards.
Specification
- Supply form
- unassembled / assembled panels
- Material
- 0,46 mm. th. aluminium
- Section blade
- "∏" base, 15mm ve h:40mm
- Cell size
- ..x.. mm.
- Panel size
- 1200x600mm
- Finish
- inner blue RAL 5012
outer silver RAL 9006
inner natural aluminium
outer black RAL 9005 - Suspension
- concealedDeltasystem
Details

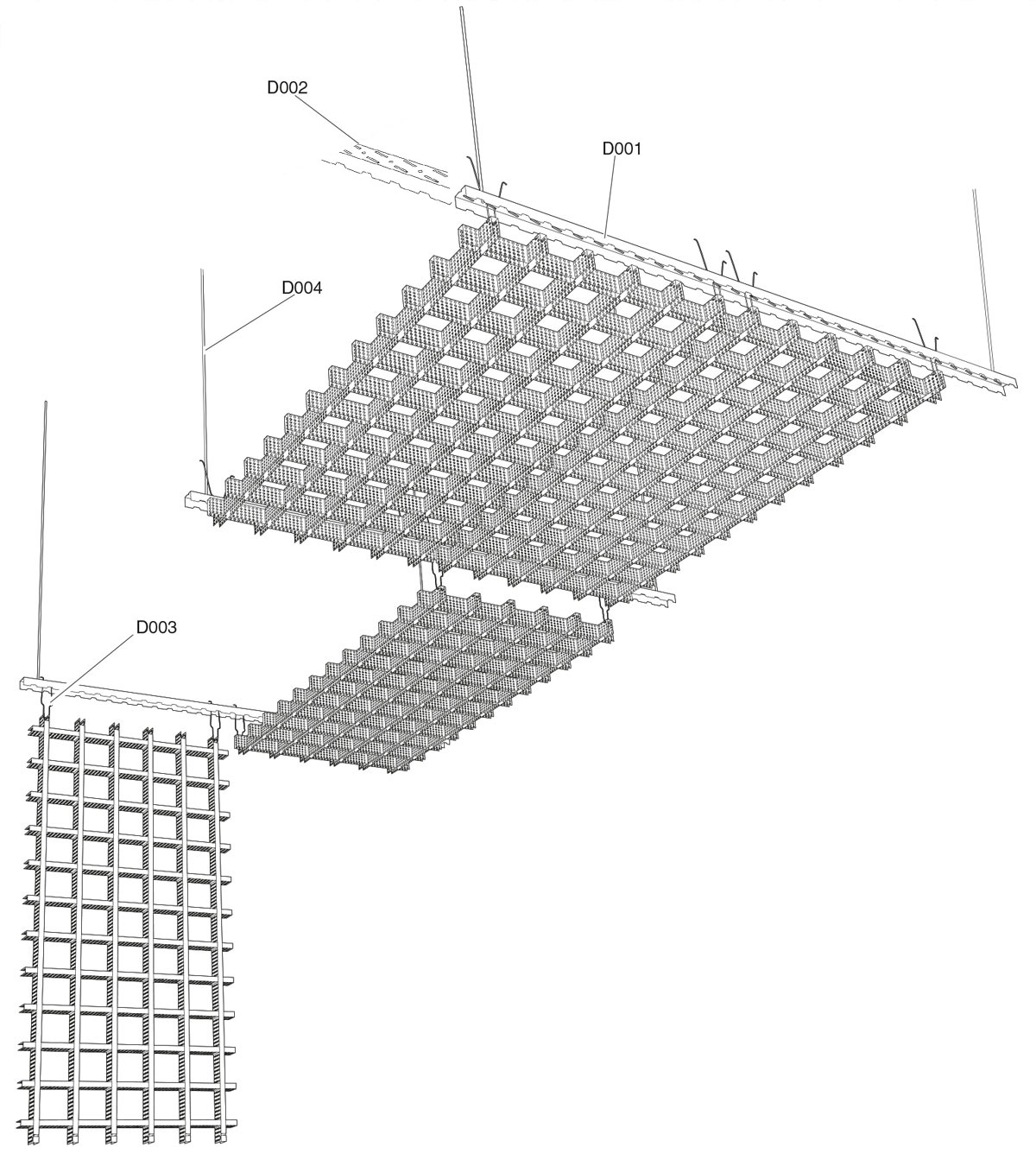

| S.No | m2 Sarfiyat Tablosu | Birim | Panel 1200x600 |
|---|---|---|---|
| 1 | D001 ana taşıyıcı kanal | lm | 0,80 |
| 2 | Ekleme Parçası | adet | 0,28 |
| 3 | D003 taşıyıcı birleşim klipsi | adet | 5,56 |
| 4 | D004 askı tiji | adet | 0,70 |
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage

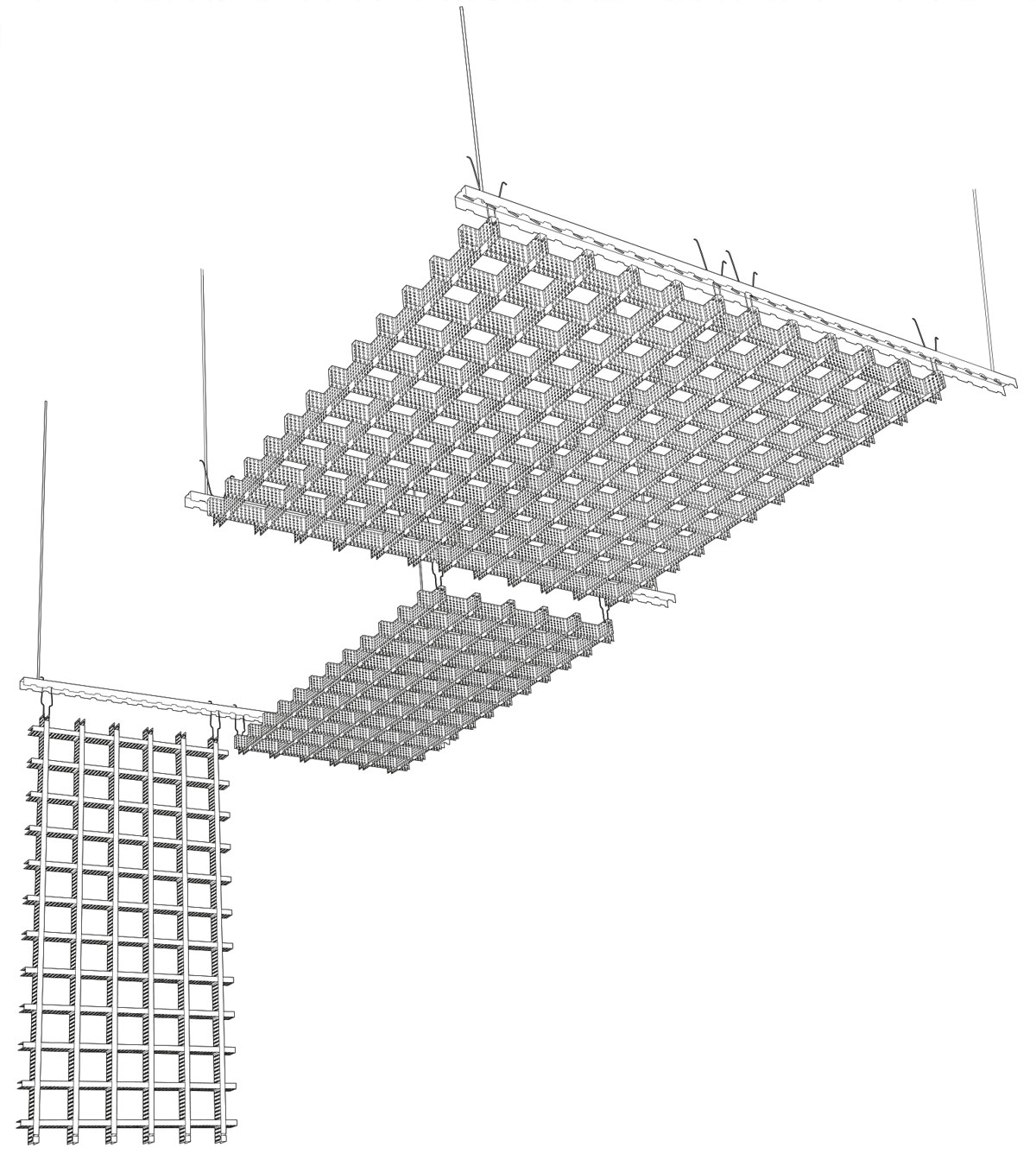

Using the concealed Delta suspension system, to install INVERSE is very easy and fast. The concealed suspension gives a trackless appea- rance and each panel, fully downward demounta- ble, can be hinged down without being totally remo- ved.
