Deckofix Premium T24 Fut
General Information
-
Details
| No | ımages | Product Name | Length | Height | Width | Thickness | Pc/Cardboard |
|---|---|---|---|---|---|---|---|

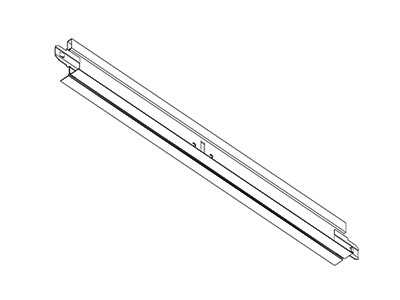

| 1 |  | Main tee | 3.600 mm | 32 mm | 24 mm | 0,35 mm | 25 |
| 2 | | Cross tee | 1.200 mm | 25 mm | 24 mm | 0,35 mm | 50 |
| 3 | | Cross tee | 600 mm | 25 mm | 24 mm | 0,35 mm | 75 |
| 4 |  | L Wall angle | 3.000 mm | 24 mm | 24 mm | 0,40 mm | 40-50 |

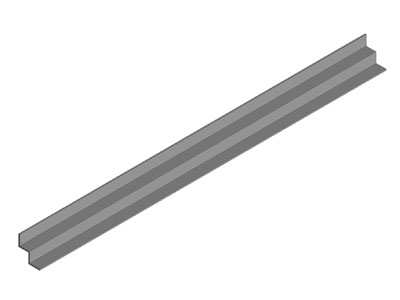

| 5 |  | Z Wall angle | 3.000 mm | 33 mm | 30 mm | 0,40 mm0,50 mm | 30 |
CAD&PDF
| File Name | DWG | ||
|---|---|---|---|
| No files uploaded for this product | |||
Montage
Assembly content is being prepared
