DeckoWood Acoustic Wooden Wall

General Information

Acoustic wooden wall panels provides solutions with the natural wooden look both for aesthetic and acoustic design needs in areas such as conference halls, congress centres, meeting rooms and lobby etc. Perforated wooden panels are decorative products frequently used for acoustic projects with mid or high sound absorption performance by means of different perforation types. Particularly in places where the entire area is not covered with high sound absorption panels, low sound absorption perforated or unperforated (holeless) panels may also act a sound reflector.

Panel Type
MDF with melamine lamination, MDF with natural wood veneer, MDF with lacquered paint
Panel Dimension
600 x 1200 mm
300 x 600 mm
350 x 1200 mm
Panel thickness; 8 – 10 – 12 – 18 mm.
Carrier System

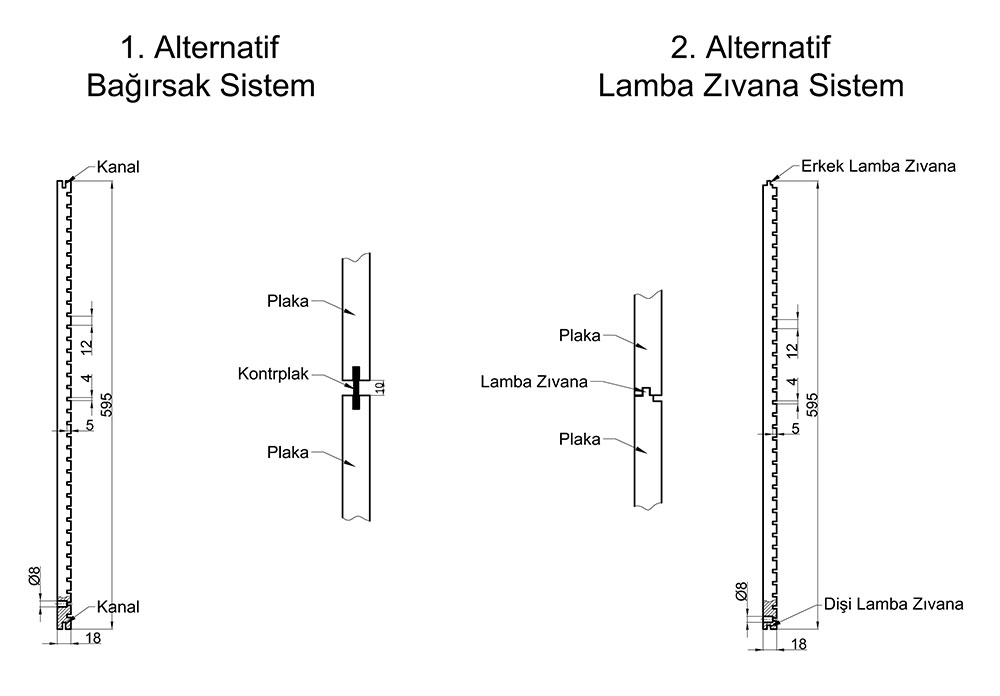

Box profile construction, tongue-groove panels on wooden frame or barsak system
Perforation
Ø1 mm. / Ø4 mm. / Ø6 mm. / Ø8 mm. / Ø10 mm.
2 mm. / 3 mm. / 4 mm. striped (slotted) fronct facade
Ø8 mm. / Ø10 mm. perforated back facade
Colour
If MDF particle board then production can be made at any colour and design selected from the chart or wooden coating on MDF
Acoustic fabric
Local, Soundtex, Royalini lantor imported acoustic and fireproof fabric options
Quality Certificates
TSE, CE

Details

CAD&PDF

File NameDWGPDF

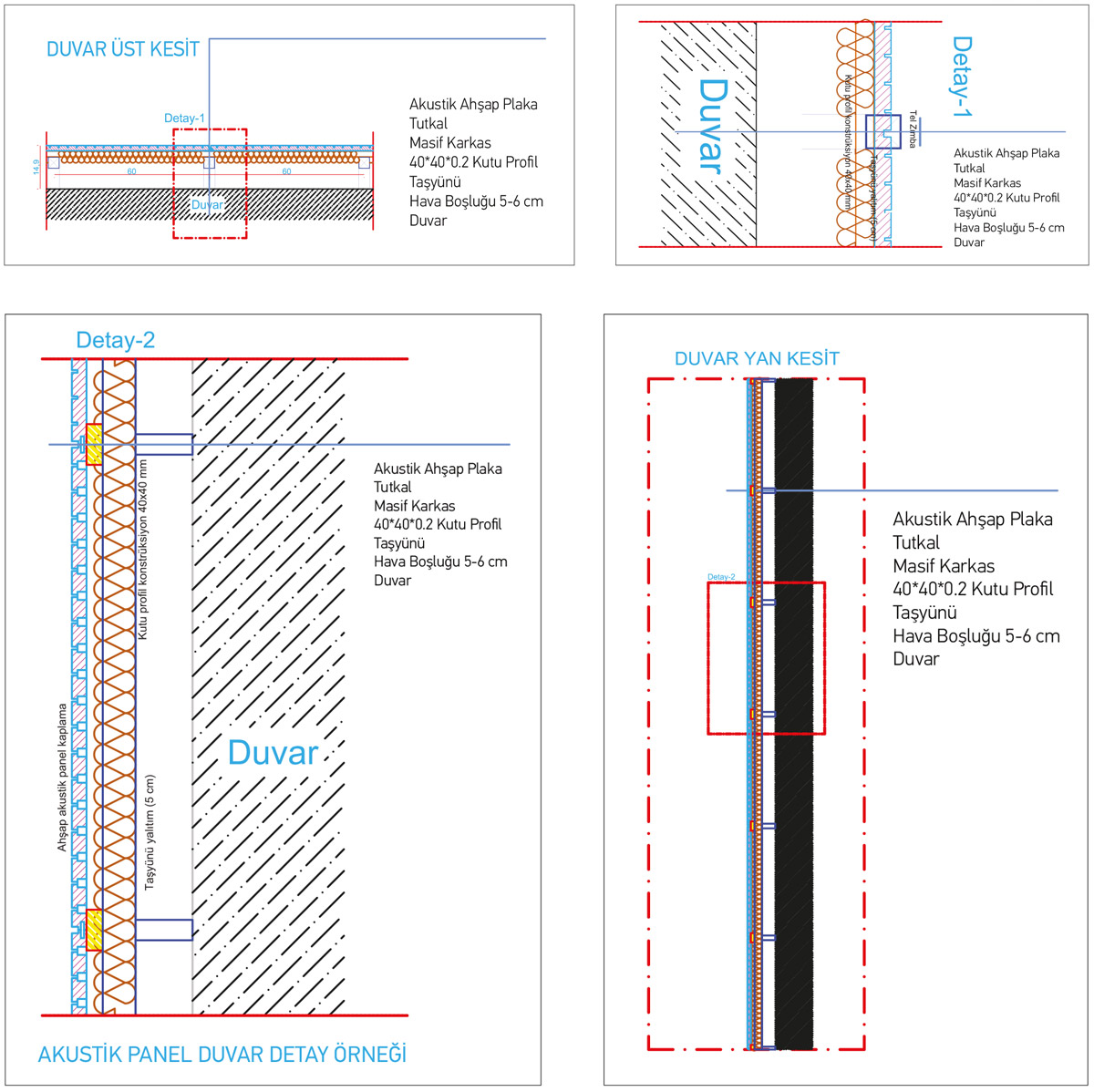

Ahşap Duvar Kaplama Sist Plan Kesit Perspektif - Model - PDF
Ahşap Duvar Kaplama Sist Plan Kesit Perspektif - DWG

Montage

Documents

File NameDOCXLSXPDF
Deckowood Duvar Yutucu Akustik Ahşap Panel Teknik Şartname P4 - Word
Deckowood Duvar Yutucu Akustik Ahşap Panel Teknik Şartname P2L2 - Word
Deckowood Duvar Yansıtıcı Akustik Ahşap Panel Teknik Şartname P0L1 - Word
